After-sales Service Provided and 1 Year Warranty Dairy Cream Separator
Price:
AED 100,468.99-122,777.16
MOQ:
1
Delivery Time:
Negotiable
Brand:
Juneng
Product Description

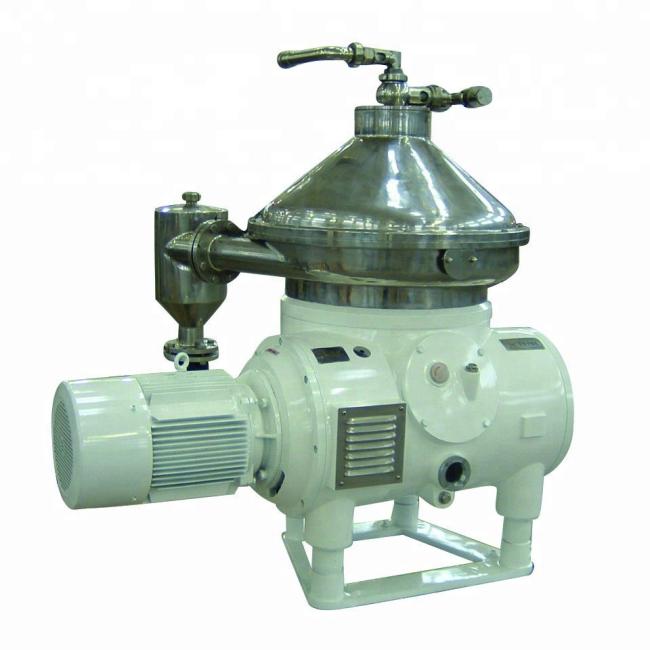

After-sales Service Provided and 1 Year Warranty Dairy Cream Separator
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air from entering and maintaining product quality.
Product Application
Milk products exhibit wide diversity, with even the simplest market milk containing varying fat contents. Our separators are essential for producing various dairy products including butter, cheese, quark, yogurt, and more.
Main Features
- High rotating speed
- Operating stability
- Completely sealed inlet and outlet system
- Lower noise operation
- Perfect separating efficiency
Technical Specifications
| Model | Treatment Capacity (L/H) | Inlet Pressure (Mpa) | Outlet Pressure (Mpa) | Motor Power (Kw) | Weight (Kg) | Outline Dimension (mm) |
|---|---|---|---|---|---|---|
| DHN360 | 2000-5000 | 0.05 | 0.1-0.35 | 7.5 | 1200 | 1530*1150*1500 |
| DHN470 | 5000-10000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*1750 |
| DHN550 | 10000-20000 | 0.05 | 0.1-0.4 | 22 | 2300 | 1950*1550*1960 |
| DHN616 | 25000-35000 | 0.1 | 0.3 | 37 | 3000 | 2185*1728*2082 |

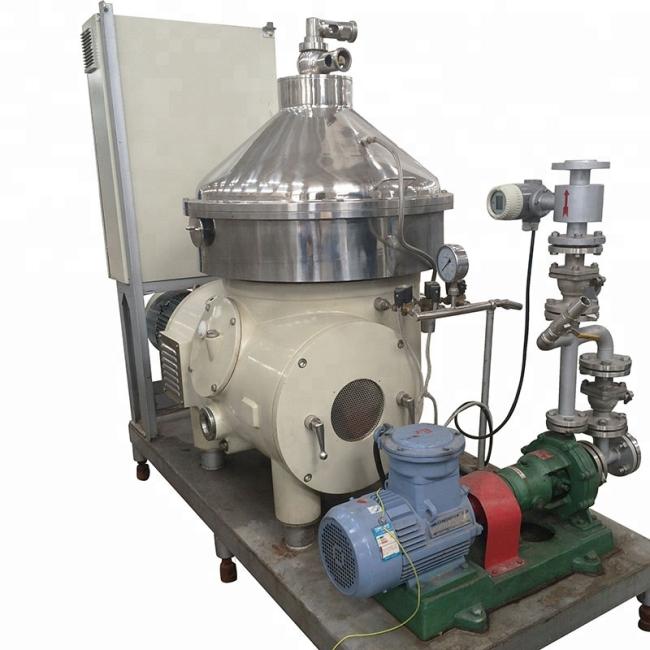

Machine Components

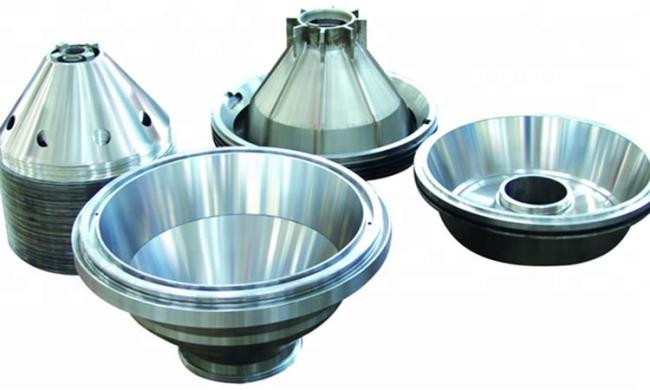

Parts in the Rotating Bowl Drum
Brand: Juneng
Origin: China
All parts and components contacting materials are manufactured from stainless steel, effectively minimizing corrosion from separated materials while meeting stringent food hygiene requirements.

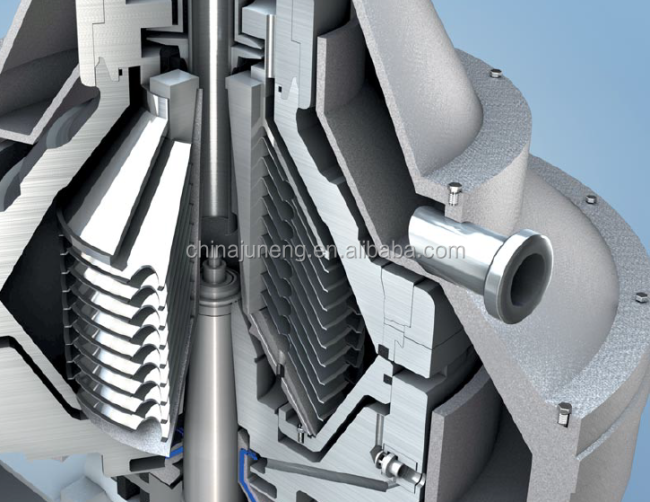

Drum Assembly
Brand: Juneng
Origin: China
The drum is the core component responsible for material separation, rotating at high speeds to serve as the heart of the separator. Each separator bowl undergoes precise dynamic balancing to ensure stable operation with minimal vibration and noise.

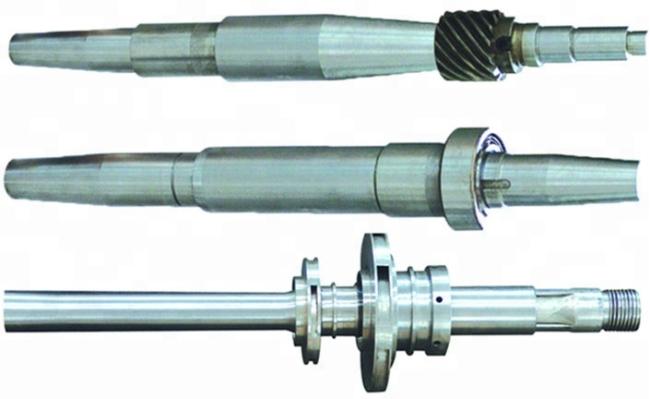

Shaft System
Brand: Juneng
Origin: China
The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating components. The cross shaft transfers motor power to the vertical shaft and main drum parts.

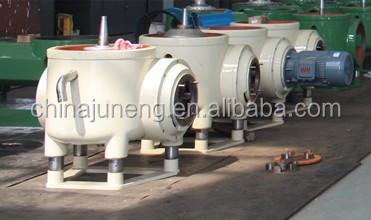

Equipment Base
Brand: Juneng
Origin: China
The underframe provides primary support for the entire separator and base connection. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building structure.

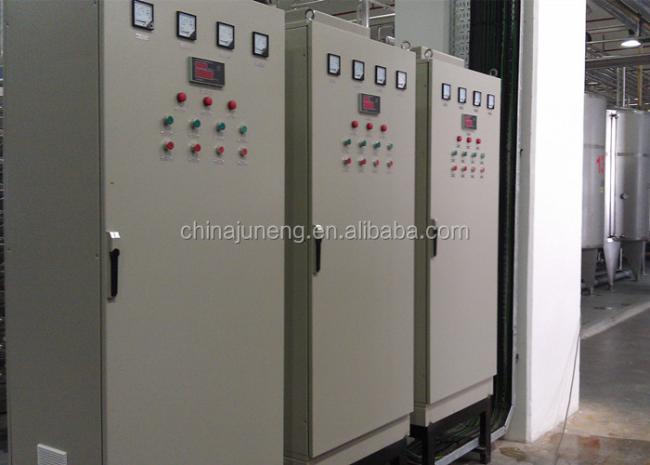

PLC Control Box
Brand: Juneng
Origin: China
The separator includes an automatic control cabinet featuring an industrial computer and auto overload protector. This highly automated system offers excellent adaptability to process changes, easy adjustment capabilities, and significantly reduces operator workload.

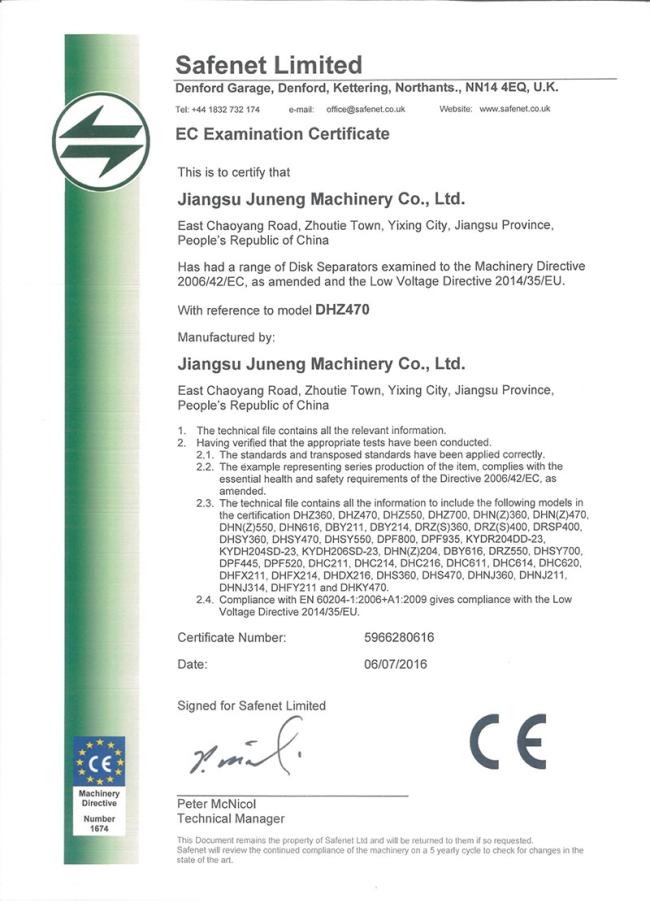

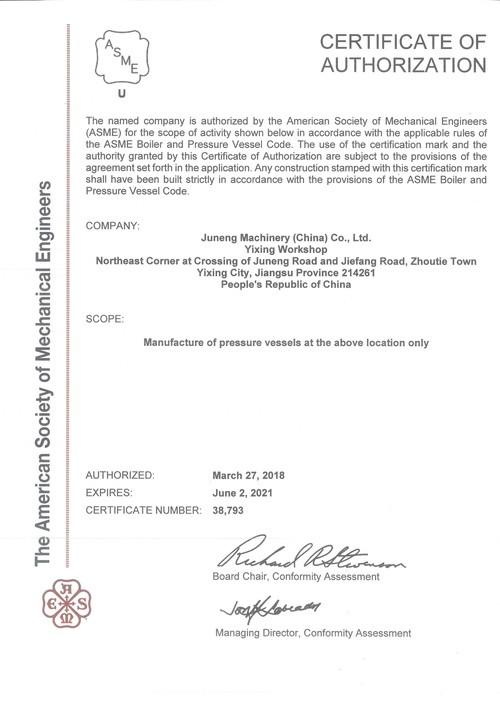

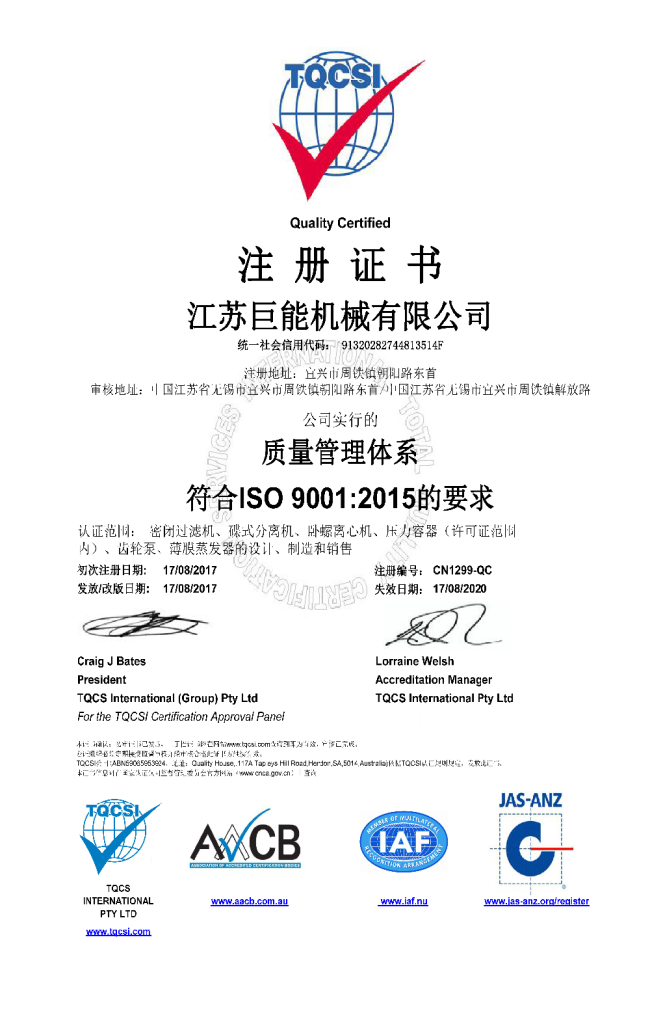

Certifications
Our Service Commitment
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing opportunities

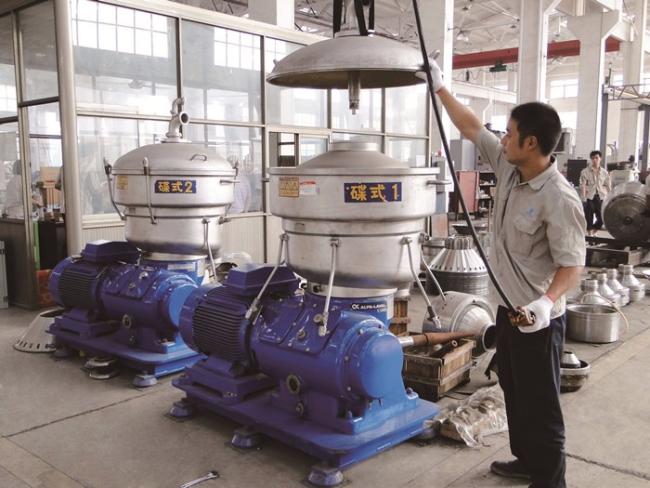

After-Sales Service
- Machine installation training
- Comprehensive operation training
- Overseas engineer service availability

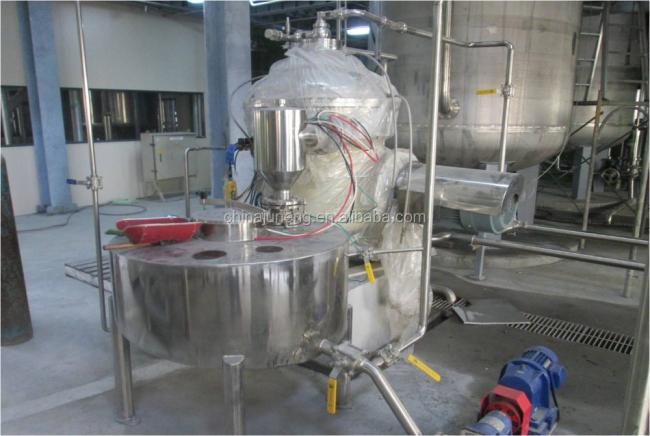

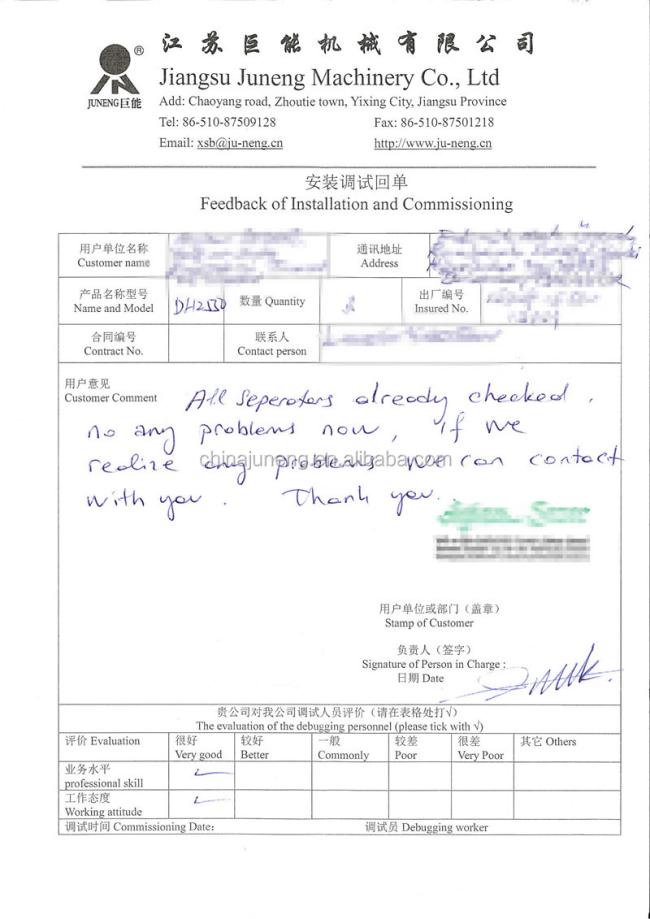

Field Installation and Commissioning
Our company maintains a professional after-sales service technical team. All products include engineer-guided installation, assistance with debugging, and comprehensive operator training until mastery is achieved. For any operational issues, we guarantee response within two hours of notification and dispatch after-sales service engineers to resolve problems on-site, ensuring complete customer satisfaction.
Packing & Delivery
Packaging Specifications
| Size | 123 (L) * 456 (W) * 789 (D) |
|---|---|
| Weight | 1.2 T |
Packaging Details
Standard packaging utilizes wooden boxes (Size: L*W*H). For European exports, wooden boxes undergo fumigation. For tight container fits, we employ PE film packaging or accommodate special customer requests.
Related Products

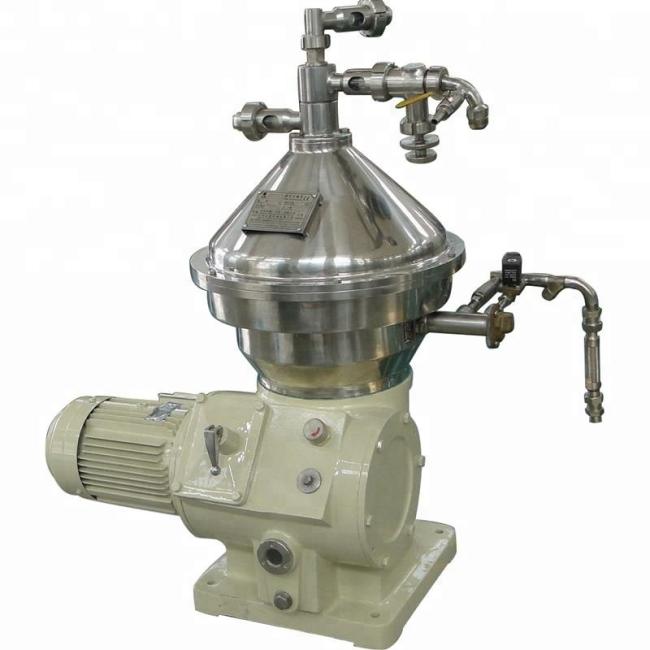

Three Phase Disc Separator
91.8% Response Rate

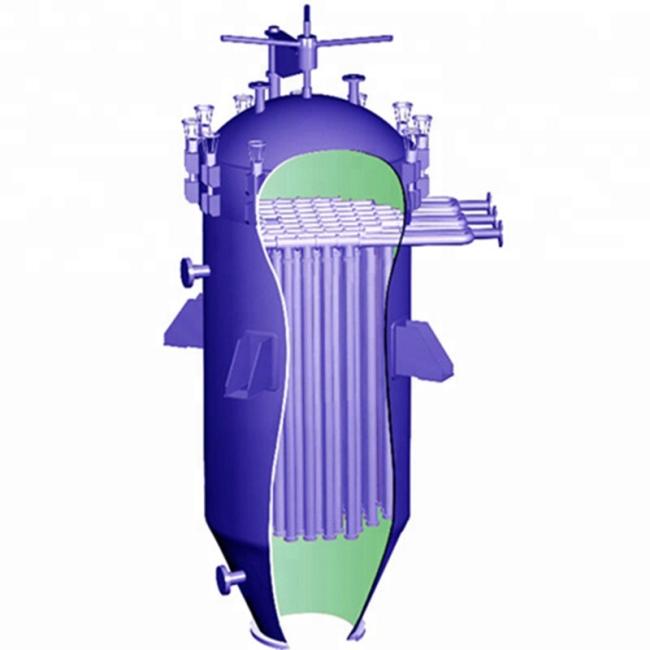

Candle Filter
91.8% Response Rate

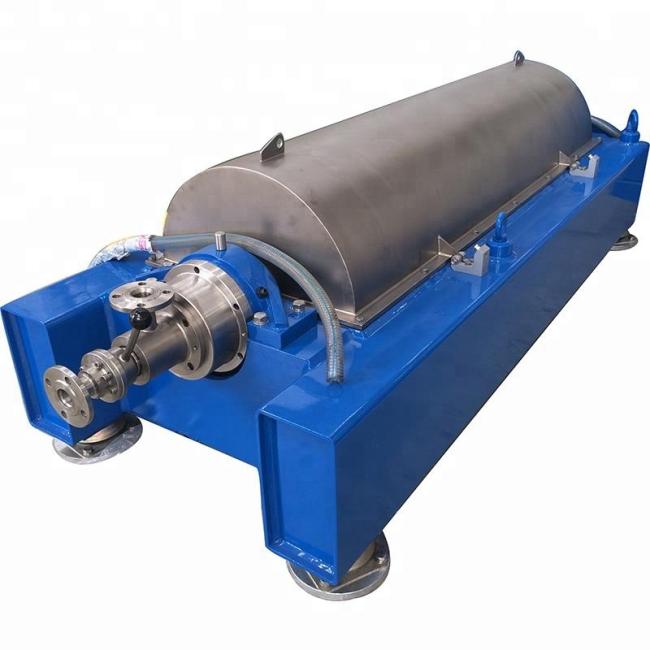

Decanter Centrifuge
