Industrial Stainless Steel Milk Cream Separator 304/316, 6600RPM, 3000-7000 L/Hd
Price:
$30,000-40,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Juneng
Product Description
Disc Bowl Milk Cream 3 Phase Separator Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air from entering and maintaining product quality.
Milk products vary widely in composition, from simple milk with different fat contents to diverse dairy products including butter, cheese, quark, and yogurt.
Main Features
- High rotating speed
- Operating stability
- Completely sealed inlet and outlet system
- Lower noise operation
- Perfect separation efficiency
Technical Specifications
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
|---|---|---|---|---|---|---|
| DHNZ204 | 1000-1500 | 0.05 | 0.1-0.2 | 4 | 520 | 810*850*1350 |
| DHNZ360 | 1000-3000 | 0.05 | 0.1-0.3 | 7.5 | 1200 | 1530*1150*1500 |
| DHNZ470 | 3000-7000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*2030 |
| DHNZ550 | 5000-10000 | 0.05 | 0.1-0.4 | 22 | 2300 | 1950*1550*1960 |
Detailed Components
Disc
Brand: Juneng | Origin: China
Shaft
Brand: Juneng | Origin: China
The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating parts. The cross shaft transmits motor power to the vertical shaft and main drum components.

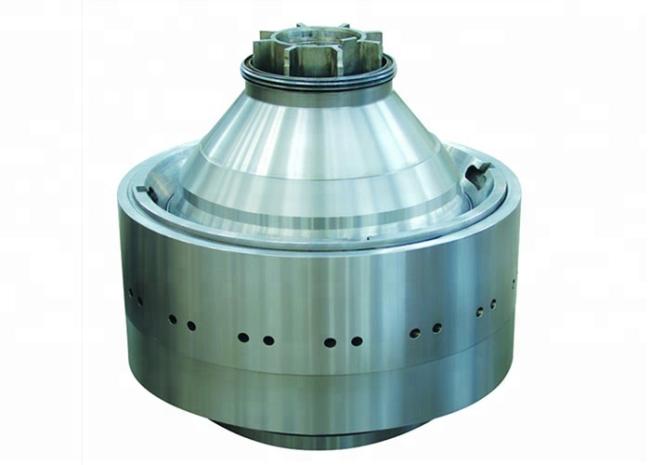

Drum
Brand: Juneng | Origin: China
The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator.

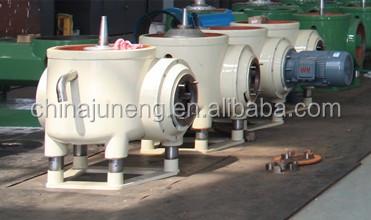

Equipment Base
Brand: Juneng | Origin: China
The underframe supports the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building.
Quality Testing & Inspection

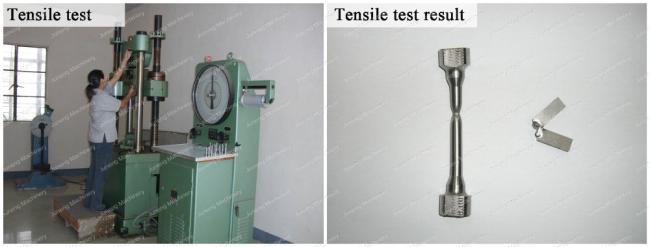

- Material Test Report
- Magnetic Particle Examination
- Nondestructive Examination
- Liquid Penetrant Examination
- Dynamic Balancing Test
- Radiographic Examination
Our Services
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support

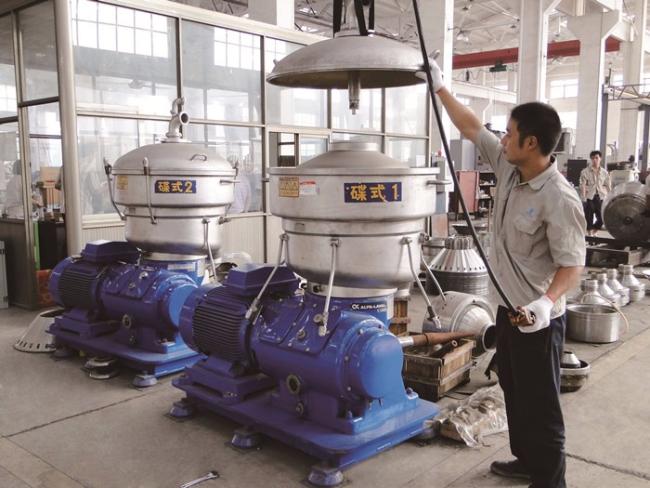

- Factory viewing opportunities
After-Sales Service
- Machine installation training
- Operation training
- Overseas engineer support

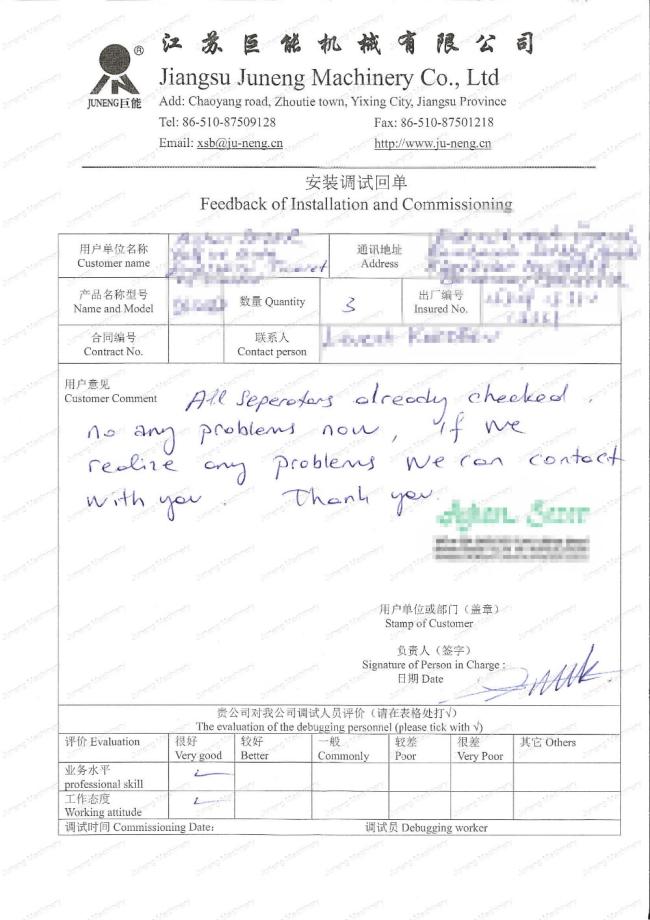

We maintain a dedicated division to support on-site services domestically and internationally. Upon order, our technical engineers will assist with equipment installation to ensure smooth operation and provide operator training.

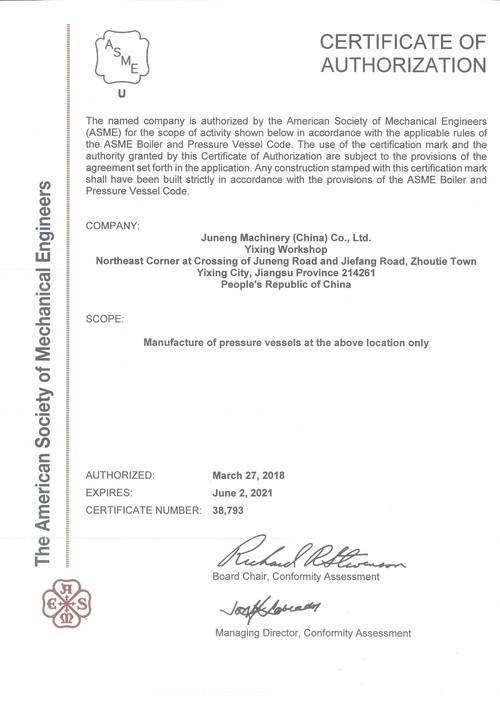

Certifications
Exhibitions
We have participated in numerous international exhibitions including ACHEMA, AchemAsia 2019, ProFood Tech, 21st Interphex Week Japan, and both Spring and Autumn Canton Fairs.
Packing & Delivery
| Packaging Size | 123 (L) * 456 (W) * 789 (D) |
|---|---|
| Weight | 1.2 T |
Standard packaging uses wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight containers, we use PE film or accommodate special customer packaging requests.
