Liquid Industrial Bag Filters Stainless Steel Material For Milk / Mineral Water
Liquid Energy-saving Industrial Bag Cylinder Lid Filters Used Milk, Mineral Water
Product Applications:
It’s widely used in paint, beer, vegetable oil, pharmaceutical, cosmetic, chemicals, petroleum products, textile chemicals, sensitization chemical, electroplate, milk, mineral water, hot solvent, milk rubber, industrial water, sweet water, resin, printing ink, industrial waste water, juice, edible oil, etc.
Product Description:

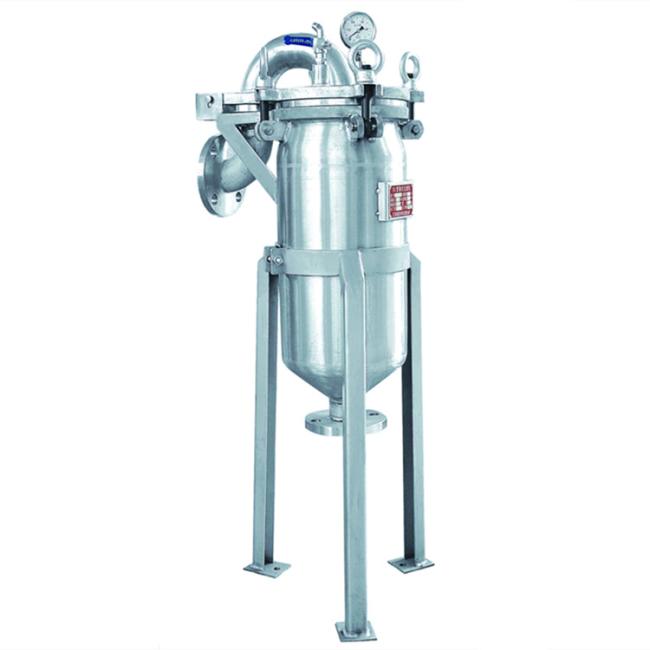

DL series bag filter is a multifunction filter equipment with new structure, small occupancy, flexible operation, energy-saving, high-efficiency, enclosed operation and excellent applicability.
DL series filter bag is mainly composed by filter cylinder, cylinder lid, quick-opening structure, filter bag reinforce net.
DL series filter bag belongs to pressure filter equipment , liquid flow into the filter bag through the side-way. Filter bag itself is fitted in the reinforce net that the qualified filtrate is achieved after the liquid pass the filter bag which has various precision ranks. The impurity is seized by the filter bag. The filter bag is easy to be changed and has little consumption of materials.
Product Specifications:
| Model | Filtration area ㎡ | Inlet/outlet caliber mm | Max flowrate ㎥/h | Max work pressure Mpa | Max temperature ℃ | Nominal filtration precision μm |
| DL-1P1S | 0.25 | DN40 | 10 | 0.4 | 120The working temperature is related to the material of filter bag . | 1,5,10,15,25,40,50,65,75,80,100……1200 |
| DL-1P2S | 0.5 | DN40 | 20 | |||
| DL-4P2S | 2 | DN80 | 80 | |||
| DL-8P2S | 4 | DN125 | 160 | |||
| DL32P2S | 16 | DN200 | 640 |
Repair and Maintenance:
We sincerely offer various fittings for import and domestic separator users. Our professional personnel will give you help and consultation at any time.
Product competitive advantage:
This bag filter has many advantages such as small occupancy, high-efficiency, enclosed operation and excellent applicability.
The filter bag is easy to be changed.
Company Service:
Pre-sale service:
1. Prompt in response
2. Preferential quotation is provided.
3. Technical drawing check
After service :
1. Guide you do the normal maintenance.
2. Technicians are availabled for overseas service.
3. The customer could get trained by our experienced tecnician.
Training:
Juneng Company provides parts and repair, maintenance as well as techical advice for the demestic and import separator in long time. We guarantee the quality of every maintenance and service.
Commercial Cooperation and Exchange:
1. Focuse on international collaboration in technical aspect and commercial
2. Advance the management system and experance from other countries,such as USA, Canada, Germany, Russia etc.
