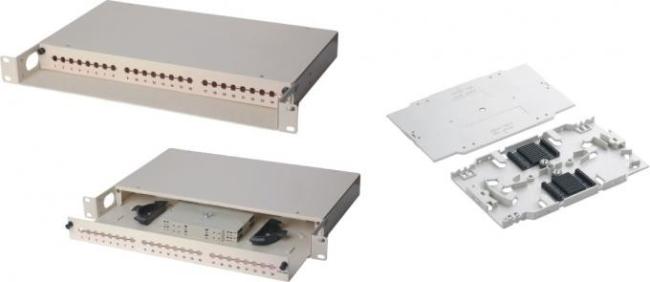

12 Core Stackable ABS Fiber Optic Splicing Tray / Fusion Splice Tray With Sleeve Slot

Quick Detail:

1. Made of ABS material.

2. Used in Wall mounted closures, or patch panels

3. Light weight and compact.

4. The base and cover of the box adopts self-clip method, which is easy and convenient to open and close.

5. each piece with 12 cores or 24 cores capacity

6. You can choose pieces to your equipment,this optical tray can be stakable

7. Easy for installation, termination and movement.

Description:

12 core Stackable fiber optic splicing tray, upturned splice tray

Fiber optic splice tray is desired for optic fiber management, to provide a location for storage and protection to the fiber optical cable and splices, easy for installation, termination and movement.

The splice tray expands fiber splice capabilities as well as provides the splicing location for fiber optic cables. The fiber guild route supports a good protection when we place the balance fibers in good band ratio.

Use for single-mode or multimode fiber

Durable injection-molded plastic trays and covers

Center holes for mounting of the tray

12-fiber and 24-fiber splice trays are available in Wall Mounted enclosures & splice closures

Product’s Description

1. Capacity: 12core or 24 core

2. Crooked sleeve slot, well fixed

3. Removable splice module

4. Material: ABS

5. Color: Grey

6, Dimension: 154 x 92 x 10 mm

You can order the YH-1037 splicing Heat fusion sleeves(fusion splice protections) as well.There is types for your option

YH-1037-A for 40mm splicing sleeves

YH-1037-C for 60mm splicing sleeves

Applications:

• FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.Provide fusion and storage appliance for optical cables,for indoor fiber optic cable distribution.

Specifications :
