Product Description

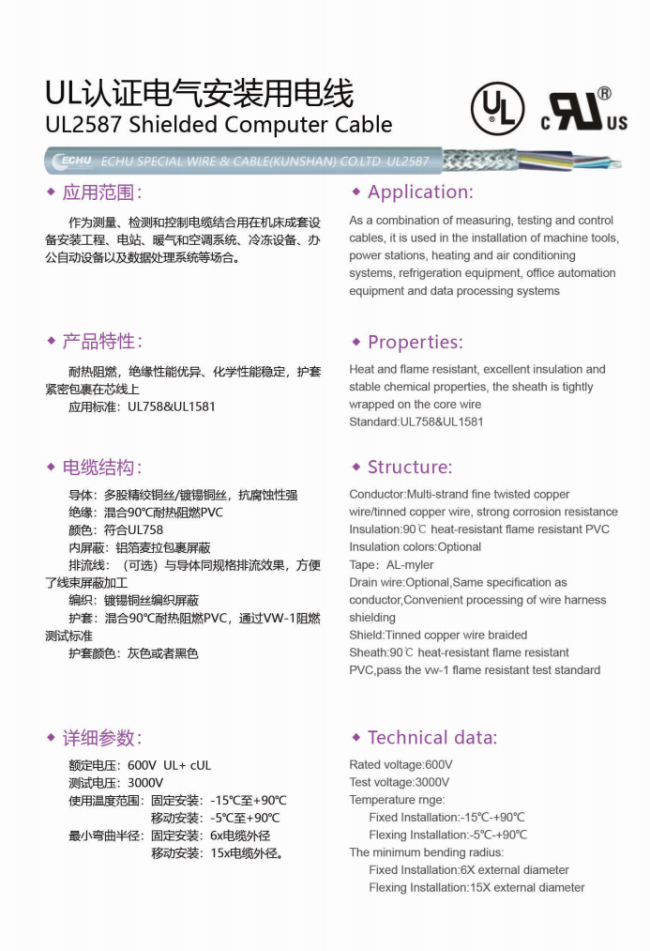

UL2587 Heat Resistant Flexible PVC Sheath 90ºC 600V VW-1 cUL
-Rated Voltage: 600V
-Rated Temperature: 90ºC
-Insulation Material: PVC
-Jacket Material: PVC
-Conductor: Tinned or Bare, Stranded or Solid Copper
-Optional: AL-Mylar, Copper Braided
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance, motor, automation machine, machine tool equipment, logistics transportation equipment, cranes, automatic elevators, lifting parking, measurement, detection and control, air conditioning systems, refrigeration equipment, office automation equipment and data processing systems, driving, etc.

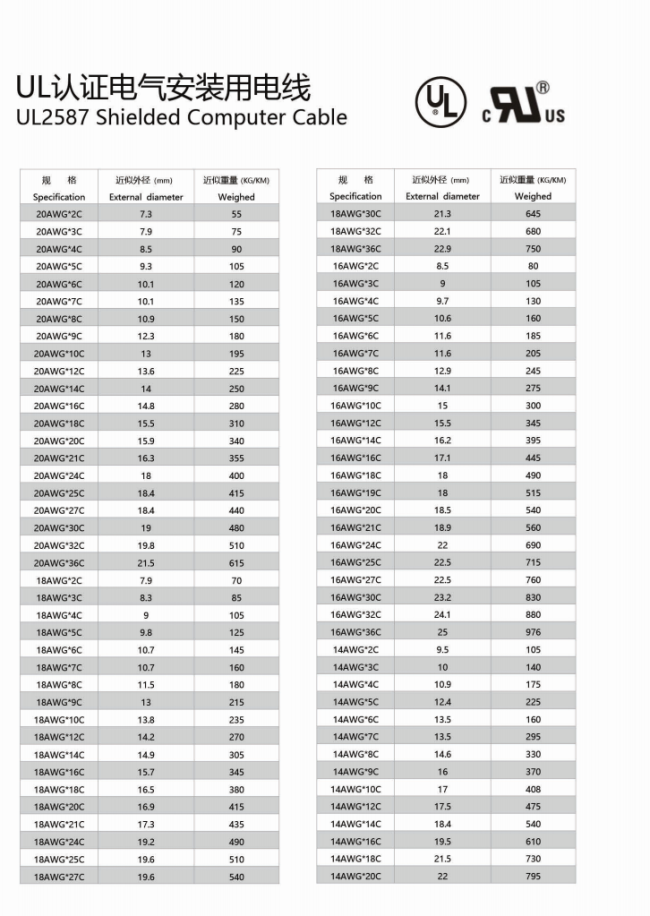

The catalog only includes some specifications. If other specifications are needed, they can be customized
