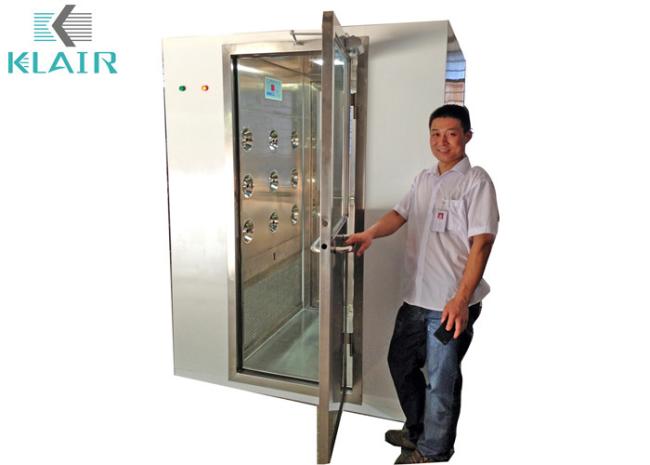

GMP Cleanroom Stainless Steel Air Shower With Air Interlocked System
GMP Cleanroom Stainless Steel Air Shower with Air Interlocked System
Product Description

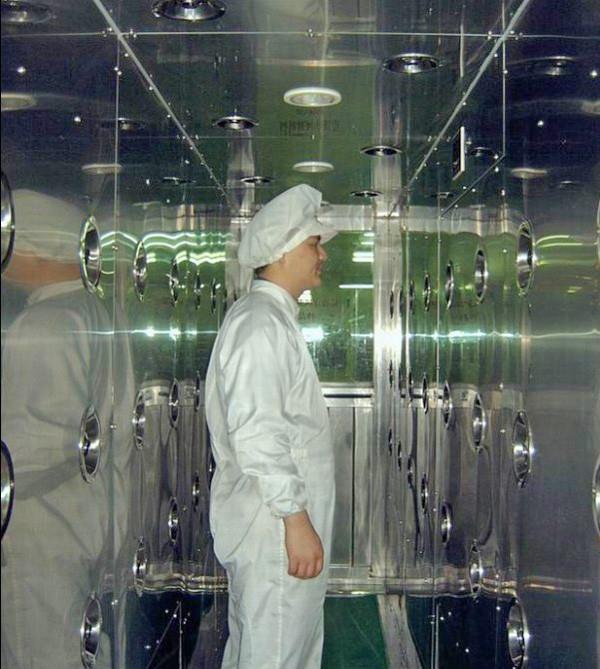

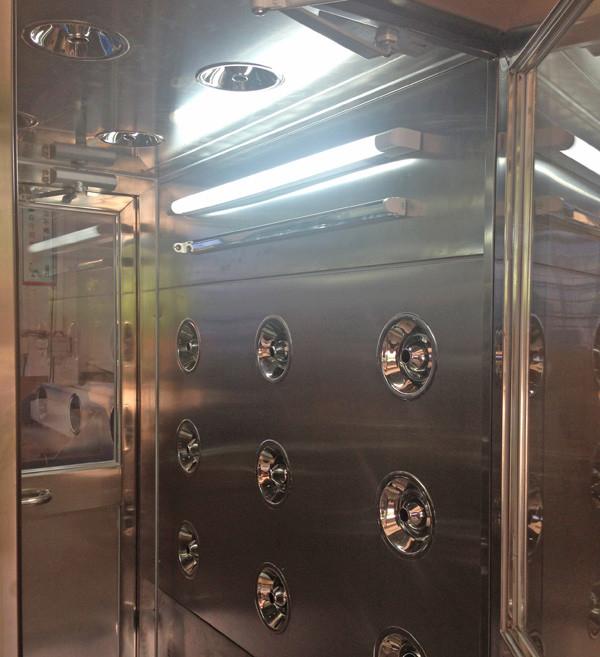

The air shower is a necessary passage for entering the clean room. Air shower room is used for purifying equipment of pharmaceutical,health, raw and cooked food processing, precision instruments, meters ,aviation and other industries .Before the operators enter the workshop, the hair, dust, and other debris attached on the operator's garment surface can be removed when they pass through air shower. Shower way: single-side shower, double-side shower, three-side shower, top shower.
Features
1. Photoelectricity control, automatic shower.
2. Circulated air design keeps shower area clean in non-shower state.
3. Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.
4. Made as negative pressure and anti-exploding air shower according to users requirement.
5. Equipped with the device to remove static.
6. Carry on air brake, cushion type and other particular design, manufacturing.
Technical Data Sheet
Material: Stainless Steel
Power: AC220V/AC380V
Dimension(L*W*H): Customized
Specification: 1300*1000*2150mm
Core Components: LCD, Electrical Interlock
Parameters Table
| MODEL | K-AR-1000 | K-AR-1500 | K-AR-2000 | K-AR-3000 | |
| EXTERNAL SIZE ( W X D X H.MM) | 1200 x 1000 x 2050 | 1200 x 1500 x 2050 | 1200 x 2000 x 2050 | 1200 x 3000 x 2050 | |
| INTERNAL SIZE ( .W X D X H.MM) | 800 x 900 x 1900 | 800 x 1400 x 1900 | 800 x 1900 x 1900 | 800 x 2900 x 1900 | |
| JET SPEED | 20-25 m/ | ||||
| NO. OF JET NOZZLES | 12 | 16 | 24 | 36 | |
| NO. OF BLOWER | 2 | 2 | 4 | 6 | |
| POWER SUPPLY | AC, 1 PH, 220V, 50/60Hz or AC, 3 PH, 380V, 50/60Hz | ||||
| POWER CONSUMPTION ( APPROX.) | 1100W | 1200W | 2200W | 3300W | |
| HEPA FILTER | EFFICIENCY | 99.99% or more at 0.3 μm particle | |||
| SIZE | 760 x 570 x 70mm | 1170 x 570 x 70mm | 760 x 570 x 70mm | 760 x 570 x 70mm | |
| NO. | 2 | 2 | 4 | 6 | |
| PRE-FILTER | NON-WOVEN | ||||
| CONSTRUCTION | CASING | Powder baked epoxy finishing steel or Stainless steel | |||
| FLOOR | SUS | ||||
| DOOR | SUS | ||||
| LIGHT FITTING | 20W x 1 | 20W x 1 | 20W x 2 | 20W x 3 | |
| WEIGHT( APPROX.) | 190 KGS | 260KGS | 360KGS | 550KGS | |
| RECOMMENDED NO.OF PERSON | 1 | 1-2 | 2-3 | 3-4 | |
