Extruded aluminum Glass Fiber Pocket Bag Filter F5-F9 Medium Efficiency
Glass Fiber Pocket Bag Filter F5-F9 Medium Efficiency
Product Description

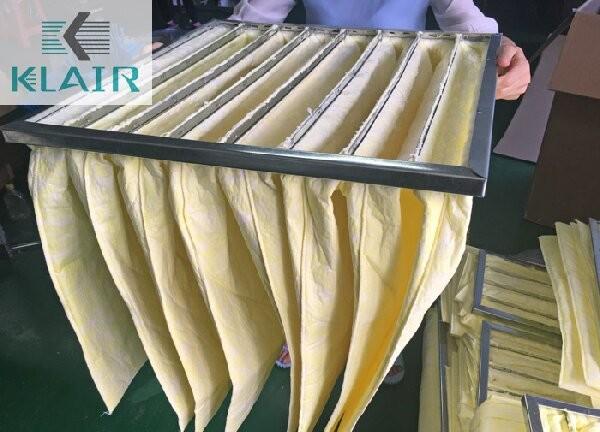

Pocket filters are made with high loft ultra fine glass fiber media, designed to provide high dust holding capacity and long service life. Propagate has excellent dust holding capacity and long service life. These filters are used in a variety of commercial and industrial applications, such as hospitals, schools, automotive plants and a a variety of special applications. Specialty application areas include: oil mist collection, fume collection and collection of heavy concentrated fine airborne contaminants. These filters fit into most standard built up filter banks or side access housing systems without any modification.
Features
1. Robust and durable material.
2. High dust holding capacity and low resistance.
3. High porosity of filter media, large filtration area
4. Good efficiency stability.
5. Temperature resistance up to 150 degrees.
6. No formaldehyde addition, safe and environmental protection.
7. High air tightness.
8. Low clogging rate and long service life.
Technical Data Sheet

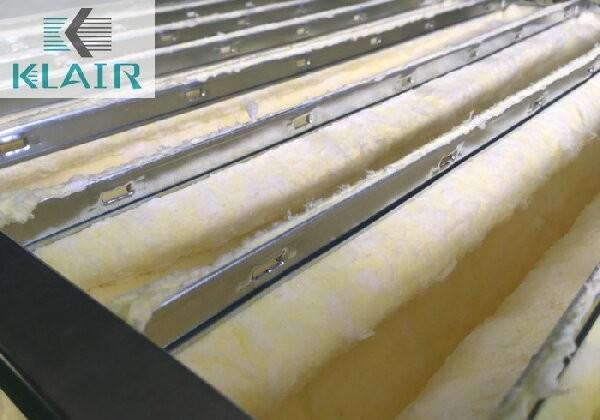

Media: Micro glass fiber

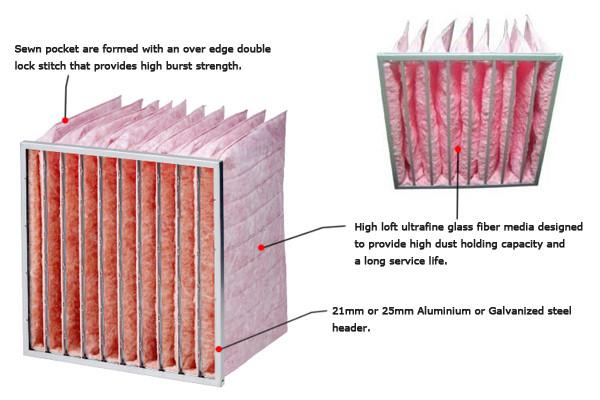

Pocket type: Sewing bag / Ultrasonic bag
Frame: Extruded aluminum / Galvanized steel
Optional aluminum thickness(mm): 21 25
Max. Temperature: 50℃
Max. Humidity:100%
Parameters Table
| PART NUMBER | NOMINAL SIZE (WxHxD.INCH) | NUMBER OFPOCKETS | RATED AIRFLOW (CFM) |
MERV9 INI.RESISTA NCE (IN. W. G.) |
MERV11 INI.RESISTA NCE (IN. W. G.) |
MERV13 INI.RESISTA NCE (IN. W. G.) |
MERV14 INI.RESISTA NCE (IN. W. G.) |
MEDIAAREA ( SQ.FT.) |
| GTS-242415-8 | 24 X 24 X 15 | 8 | 11000 | 0.18 | 0.24 | 0.38 | 0.48 | 38 |
| GT5-202415-6 | 20 X 24 X 15 | 6 | 850 | 0.16 | 0.22 | 0.36 | 0.49 | 29 |
| GTS-122415-4 | 12 X 24 X 15 | 4 | 600 | 0.16 | 0.23 | 0.36 | 0.48 | 19 |
| GTS-242422-8 | 24 X 24 X 22 | 8 | 1400 | 0.16 | 0.22 | 0.36 | 0.54 | 58 |
| GT5-202422-6 | 20 X 24 X 22 | 6 | 1000 | 0.17 | 0.24 | 0.38 | 0.54 | 43 |
| GTS-122422-4 | 12 X 24 X 22 | 4 | 700 | 0.16 | 0.22 | 0.36 | 0.54 | 29 |
| GTS-242430-8 | 24 X 24 X 30 | 8 | 2000 | 0.2 | 0.28 | 0.42 | 0.6 | 81 |
| GT5-202430-6 | 20 X 24 X 30 | 6 | 1750 | 0.18 | 0.25 | 0.37 | 0.56 | 63 |
| GTS-122430-4 | 12 X 24 X 30 | 4 | 1250 | 0.18 | 0.24 | 0.36 | 0.54 | 42 |
| GTS-242436-8 | 24 X 24 X 36 | 8 | 2400 | 0.22 | 0.29 | 0.48 | 0.7 | 97 |
| GT5-202436-6 | 20 X 24 X 36 | 6 | 1500 | 0.25 | 0.32 | 0.48 | 0.7 | 73 |
| GTS-122436-4 | 12 X 24 X 36 | 4 | 1200 | 0.22 | 0.29 | 0.46 | 0.68 | 49 |
