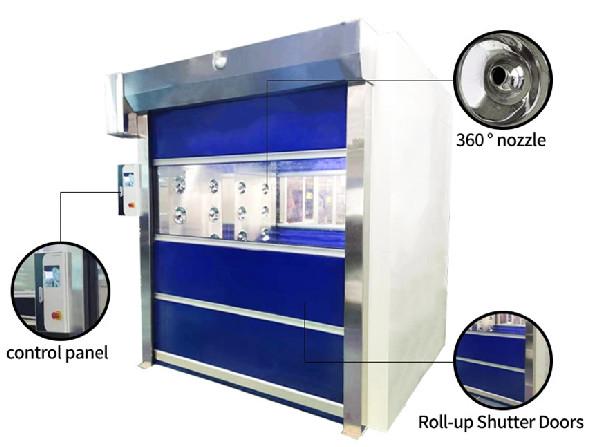

Fast Rolling Curtain Door Cargo Air Shower With Photoelectric Sensor
High Quality Fast Rolling Curtain Door Cargo Air Shower with Photoelectric Sensor
Product Description

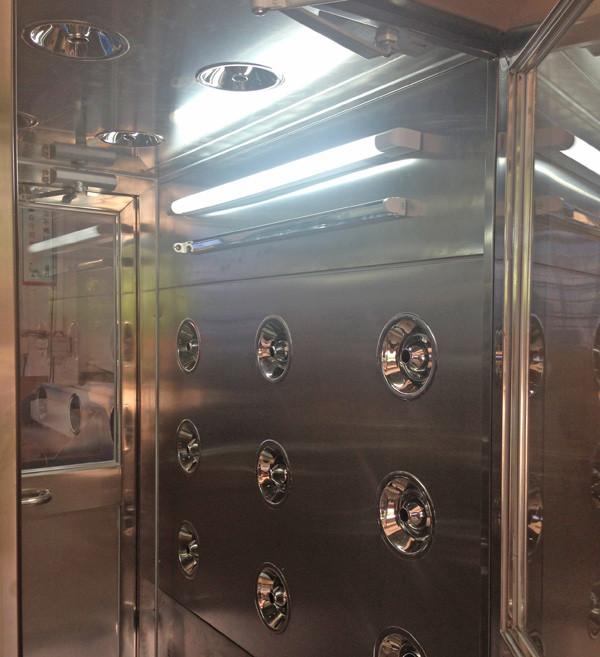

Cargo Air Shower SUS304 is specialized antechamber which personnel and cargoes need to pass through before entering clean rooms in order to decontaminate. Decontamination is done by clearing off dust and dirt particles from personnel and cargoes to minimize contamination of equipment or products.
In fields where sterile or dust-free conditions are critical, for example, life science and biomedical research, pharmaceutical, parenteral drug, microelectronics, aerospace and precision manufacturing, cargo air shower is considered essential equipment.
Features
1. Photoelectric induction control to realize automatic shower (the blowing time can be adjusted from 0-99s ). It can effectively prevent the dust on the surface of personnel and items from entering the clean room.
2. Advanced intelligent computer control module, low failure, safe and stable system.
3. The design of LED indicator and large-screen dynamic control panel is convenient for the operation ofbath time and various functions.
4. The air circulation design ensures the cleanliness of the air shower area in the non-blown shower state.

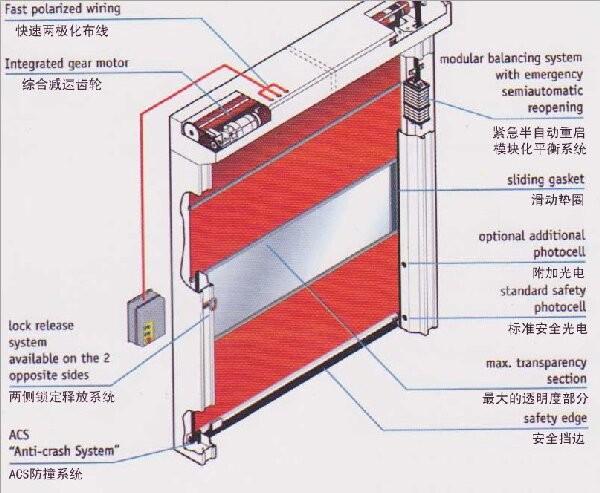

5. The double-door electric interlock implements forced showering, and the double-door can be made into an automatic sliding door or a fast rolling shutter door.
6. The material is made of stainless steel or the interior of the exterior painted steel plate is stainless steel.
7. Accept the special design of the client, and can be made into an explosion-proof air shower.
8. To undertake the special design and manufacture of airlock and buffer type.
Technical Data Sheet
Voltage: Customized
Power: 3.0KW
Outside Dimension(L x W x H): 3000X3000X3000
Inner Dimension(L x W x H): 2400X3000X2500
Weight: 1200KG
Warranty: 12months
Material: Stainless Steel 304 or coated cold rolled steel
Door: PVC Curtain
Nozzle: Rotatable 360 degree
Feature: Automatic Blowing
Door Lock: Electronic Interlock
Air Shower Time: 0-99s, Adjustable
Parameters Table
| Applicable Number of People | 1 | 2-4 | 4-5 | 5-6 |
| Air Shower Time | 0- 99s (Adjustable) | |||
| Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) | 36 (Two Sides) | 48 (Two Sides) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ 30 mm | Φ 30 mm |
| Speed of Air Flow at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600×600×120 | 600×600×120 | 600×600×120 |
| Dimension of Air Shower Area (mm) | 800×900×1960 | 800×900×1960 | 800×900×1960 | 800×900×1960 |
| Outside Dimension (mm) | 1400×1000×2100 | 1400×1000×2100 | 1400×1000×2100 | 1400×1000×2100 |
| Power Supply: 380V,50HZ, we can made nonstandard voltage for different country. | ||||
| Maximum Power Consumption | 1.1KW | 2.2KW | 3.3KW | 4.4KW |
