Stainless Steel High Efficiency Particulate Air Filter Heat Resistance 350℃
Stainless Steel Frame High Temperature Filter HEPA With Heat Resistance 350℃
Applications:
The HiTempex Filter is a High Efficiency Particulate Air filter especially designed to remove airborne contaminants in critical areas, in which high efficiency on fine particulate matter is required and where hot air is used during the production process.
These filters are used in a broad range of industries, from the production of pharmaceutics, photos and films , to food processing.
Materials and Working Conditions:
- Media: High Heat Resistant Glass fiber paper
- Frame:GI; Stainless steel
- Efficiency range from H13,H14 (EN 1822)
- Separator: Aluminium foil
- Efficiency: 99.99@0.3μm
- Initial resistance: 160 Pa
- Sealant: Thermoresistant sealant
- Recommended final pressure drop : 500Pa
- Humidity resistance: 100%
- Max Temperature: 350℃ or 400℃
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Media color available: White
- Gasket:Red high heat resistant gasket.
- Stamp Label is available upon request.
-
Silicon free sealant is available for food processing industry.
Specifications:
|
Size(HxWxD)mm |
Rated Airflow(CMH) |
Initial Resistance(Pa) |
Final Resistance(Pa) |
|
320x320x220 |
400 |
120 |
500 |
|
484x484x220 |
1000 |
||
|
610x610x150 |
1000 |
||
|
820x600x150 |
1200 |
||
|
630x630x220 |
1500 |
||
|
968x484x220 |
2000 |
||
|
945x630x220 |
2200 |
||
|
1260x630x220 |
3000 |
Other sizes is available!

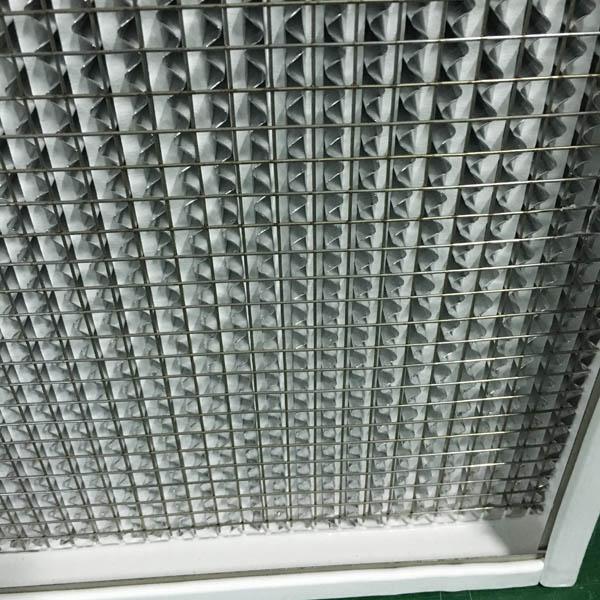

Product Picture
