MERV 5 Washable Pleated Air Filters Nylon Mesh Panel For Return Air Louver
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
5-8 Days
Brand:
KLAIR
Product Description
Nylon Mesh Panel Washable Air Filter For Air Conditioner And Return Air Louver Shutter
Applications:
Used as first stage filters in air conditioner, fan coil unit or shutter louver.
Parameters:

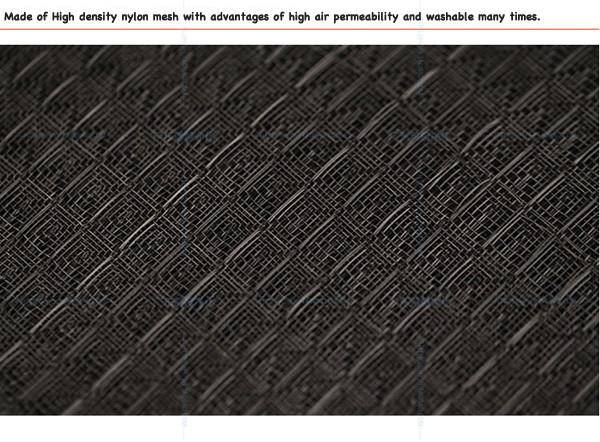

- Media: High Density Nylon Mesh

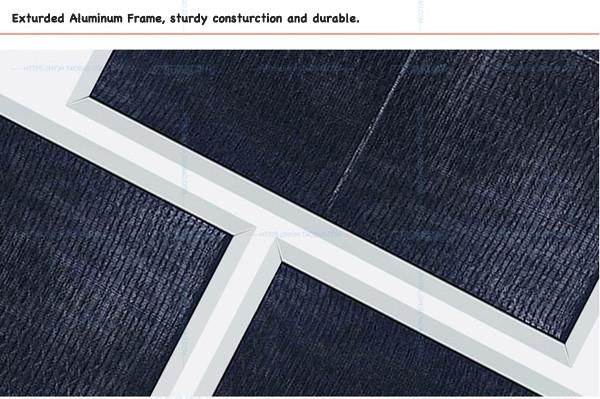

- Frame: Aluminum and Metal
- Efficiency: MERV 5 ASHRAE 52.2
- Average Arrestance: 80% @10μm;
- Initial resistance: 15 Pa
- Recommended final pressure drop : 100Pa
- Humidity resistance: 100%RH
- Max Temperature: 70 ℃
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Media color available: Black or White
- Filter standard depth available 8mm, 10mm, 21mm
- Galvanized supporting grid to ensure strength construction.
Specifications:
Filter standard depth available in 8mm, 10mm, 21mm. Filter width and height made per your request.
Product Picture:
