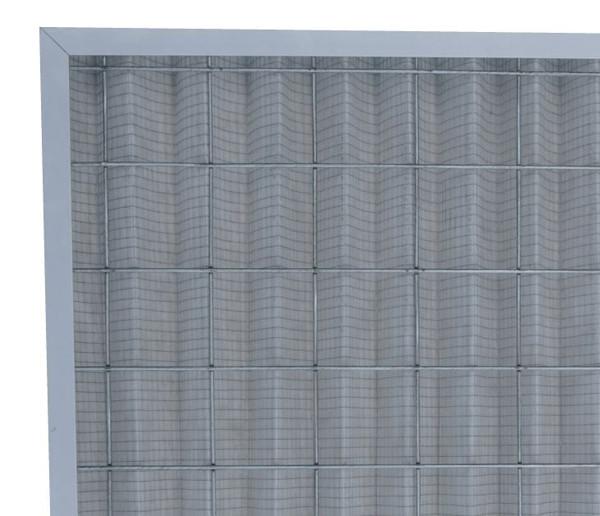

Fine Particle Filtration High Temperature Air Filter Woring in 270C Heat Oven

Applications:

High Temperature Air Filter is designed for use in Heat Oven, baked oven in the industry of Pharmaceutical and Automobile.

SPECIAL SIZES-We can custom make all sizes. It is important to specify exact dimensions on special sizes. These filters are made exactly as ordered. Thickness also available in 2" and 4".

HANDLES-Handles are available upon request at an additional cost. Please specify exact location required.

Parameters:

• Media: Glass fibre
• Frame: Aluminum or Stainless Steel
• Average Arrestance:  50% @10μm
• Initial resistance: 15 Pa
• Recommended final pressure drop : 100Pa
• Humidity resistance: 100%RH
• Max Temperature: 270 ℃
• DIN 53438 Flammability: F1
• UL 900 Standard :  Class 2
• Max.air flow rate:  125% of rated air flow
• Media color available: White
• Filter standard depth available 2 inch(46mm) and 4 inch(96mm)
• Galvanized supporting grid to ensure strength construction in diamond or square shape.

Specifications:

Competitive Advantage:

• Extended Surface Filtration Area for long service life.
• Low initial resistance.
• High flow.
• Flame resistant.
