Anti-impact Uhmwpe Crane Foot Bearing Support Outrigger Pad
Price:
USD 10-30 / piece Fob Qingdao Negotiable
MOQ:
1piece
Delivery Time:
10-15 days after order confirmation .
Brand:
Shengtong
Product Description

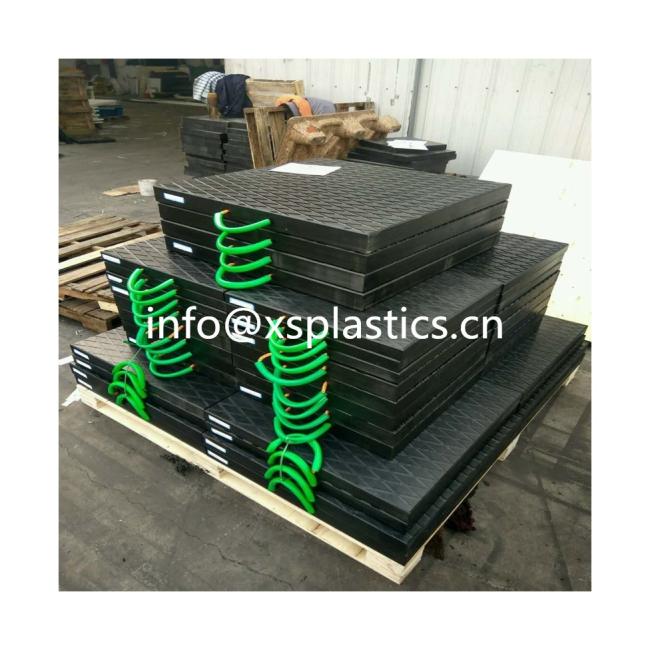

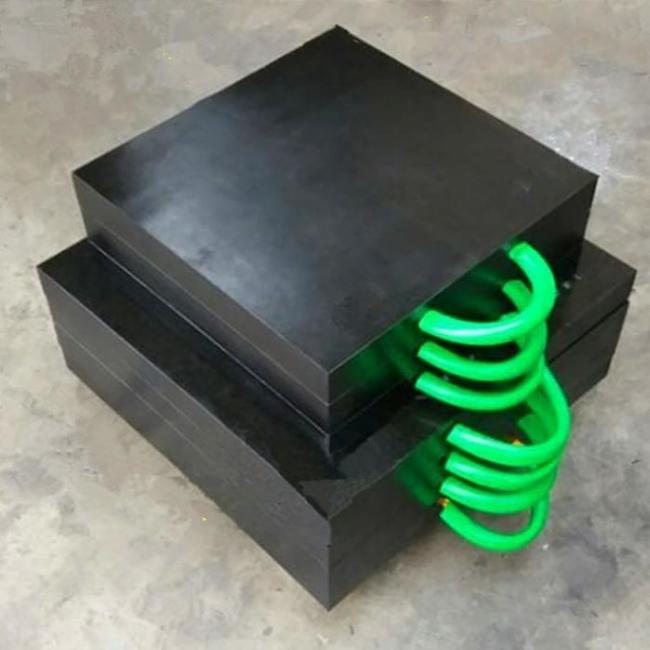

Anti-impact Uhmwpe Crane Foot Bearing Support Outrigger Pad
1, crane outrigger pad techinical data sheet
molecular weight from 1 million to 9 million.
color:black (reprocessed material),white,green,blue,yellow,orane etc.
2handles or 4 handles
| Dimensions | Weight | Vertical Jack Capacity |
Crane Capacity |
| (mm) | (kg) | (tonne) | (tonne) |
| Square | |||
| 1000x1000x40 | 39.2 | 30 | 35 |
| 1000x1000x50 | 48 | 40 | 50 |
| 1000x1000x60 | 58.5 | 50 | 65 |
| 1000x1000x70 | 68.5 | 70 | 80 |
| 1000x1000x80 | 78 | 80 | 100 |
| 1000x1000x100* | 98 | 110 | 140 |
Different size are of different crane foot bearing support/ anti-impact crane pad/ uhmwpe outrigger pad .
| 600mm x 600mm x 60mm | 20-25 tons loading capacity |
Free small size samples prepare and send over for testing.
