13.3 Inch Ultra Narrow Bezel Sunlight Readable Touch Screen Monitor With Optical Bonding
Optical Bonding Technology 13.3 inch Waterproof IP67 Monitor for Enhanced Scratch Resistance
Features
1. Ultra-thin back shell, narrow bezel design, aluminum alloy frame sandblasting and oxidation process, anti-UV and anti-discoloration treatment, front shell IP65 waterproof
2. Industrial grade LCD screen, full viewing angle
3.10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H
4. The touch screen and LCD screen are bonded using a full bonding process
5. Use industrial-grade components, work 24/7, and support wide temperature operation -20℃~70℃
Specification
LCD panel
| Panel size | 13.3" |
| Display active area | 293.76(W)x165.24(H) mm/11.565x6.506 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 400 nits |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | N/A |
| Luminousness | ≥90% |
| Touch controller IC | ILITEK5200 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical Bonding |
| Touch options | (5 wires restive touch, IR touch optional) |
I/O Ports
| Video input | 1×VGA, 1×DVI, 1×HDMI |
| Audio in/out | 1×3.5mm Line-out, 1×3.5mm Line-in (2 x 2W Speakers) |
| Touchscreen interface | 1×USB |
| Power connector | 1×Screwable 9~36V DC jack |
| Working voltage | DC 9~36V |
| Power consumption | 24W |
| Power adapter | AC 100 ~ 240V input and DC +12V@3.33A MAX output, 40W |
Enclosure
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| Mounting | VESA mount 75*75mm, Panel mount |
| IP rating | Front panel IP65 |
| Cooling system | Passive - Fanless |
| Design | 3mm bezel design(open frame design optional) |
Operating Environment
| Temperature Range | Operating: -10 °C ~ 60°C (14°F ~140°F) Storage: -20 °C~70°C (-4°F ~158°F) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
Other
| Product weight | Net weight 2.1kg Gross weight 4kg |
| Product Dimension | 327×198.6×35mm |
| Packing size | 1pcs/ctn 43×16×43cm 4kg 5pcs/ctn 43×30×43cm 8kg |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws open frame mounting kits |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

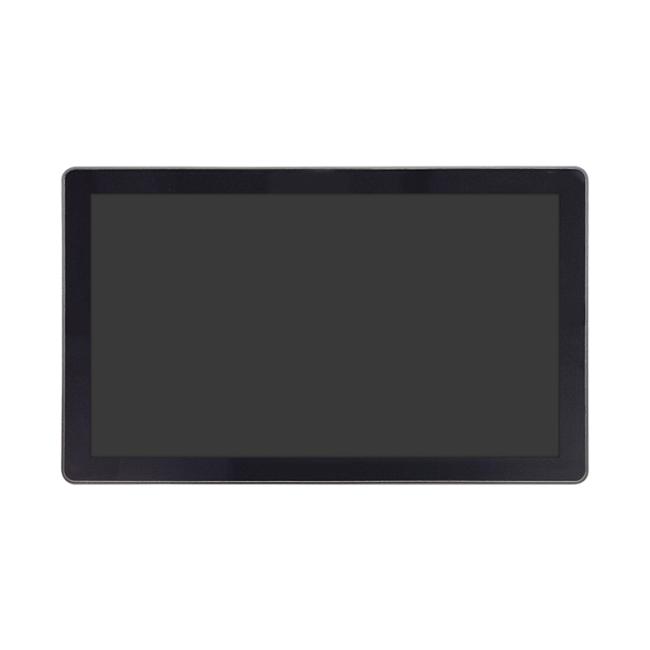

Product picture
Applications
Restaurant
Self-service kiosk
Gas station
Payment terminal machine
Vehicle
Bus stop
