24 Inch Industrial Touch Screen Monitor Waterproof 1500nits High Brightness Monitor
24 inch Industrial Touch Screen Monitor 1500nits High Brightness with Amphenol Ports and Waterproof Performance
Features
1. Narrow bezel design, aluminum alloy frame sandblasting and oxidation process, anti-UV and anti-discoloration treatment, front shell IP65 waterproof
2. Industrial-grade LCD screen, full viewing angle, 1500 brightness visible under sunlight, OSD button to adjust brightness
3.10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment
4. Play the customer-specified LOGO when turning on the computer
5. Rear aviation power test backup interface, supports 9-36VDC input
6. The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F)
Specification
LCD panel
| Panel size | 24" |
| Display active area | 531.36(W)x298.89(H) mm / 20.92x11.767 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits, sunlight readable |
| Contrast ratio | 5000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding |
| Touch options | (5 wires restive touch, IR touch optional) |
I/O Ports
| Video input | 1x DP, 1x VGA, 1x DVI, 1x HDMI |
| Audio in/out | 1x 3.5mm Line-out, 1×3.5mm Line-in(2 x 2W Speakers) |
| Touch | 1x USB |
| Power connector | 1x 12V DC jack, 1x 3-pins terminal block connector (9-36V), 1*4PIN aviation power interface 9-36VDC |
| Working voltage | DC 9~36V |
| Power consumption | 55W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
Enclosure
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black+Silver |
| Mounting | VESA mount 75*75mm, Panel mount |
| IP rating | Front panel IP65 |
| Cooling system | Passive - Fanless |
Operating Environment
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
Other
| Weight | Net weight 7.9kg Gross weight 10kg |
| Product Dimension | 576.9*345.9*54mm |
| Packing info | 1pcs/ctn 71*18*52cm/10kg 2pcs/ctn 71*34*52cm/20kg |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws, wall mounting brackets |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

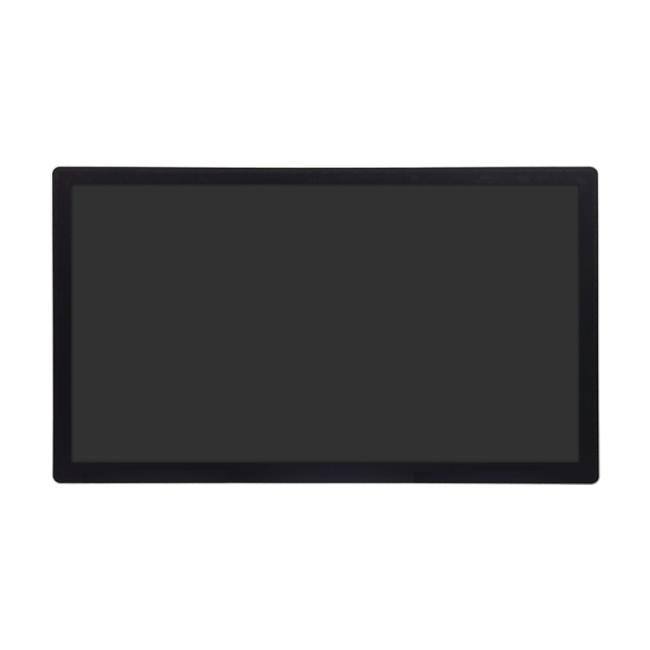

Product picture
Applications
Restaurant
Self-service kiosk
Gas station
Payment terminal machine
Vehicle
Bus stop
