12th Gen Intel N100 Mini PC with PCI and PCIE Slot for Visual Inspection
MOQ:
1 Piece
Delivery Time:
5-8 work days
Brand:
Sihovision
Product Description
12th Gen Intel N100 Factory Direct Mini PC with PCI and PCIE Slot for Visual Inspection
Features:
Intel 12th Gen-N Series N100/N300
PCI, PCIE Slot
24V power supply, Fanless
Industrial grade working temperature -20℃-60℃
Specification
| Model: SM709-3 | |
| PC | |
| CPU | Intel® N 100, 4 Cores, 4 Threads, Turbo 3.4GHz, Fanless |
| CPU Optional | Intel® N 300, 8 Cores, 8 Threads, Turbo 3.8GHz, Fanless |
| Graphics | INTEL UHD Graphics |
| Memory | Onboard 8G RAM |
| Storage | 1 *M.2 (M.2 2280 NVME) |
| Display | 1* HDMI Maz 4096*2160@ 60 Hz, 1* VGA Max 1920*1200@ 60 Hz, 1* DVI Max 4096*2160@ 60 Hz |
| Network | 4* LAN (LAN4: Intel I226V; LAN1, LAN2, LAN3:RTL8111H) |
| I/O | 4* USB2.0, 2* USB2.0, 4* LAN, 1* HDMI, 1* DVI, 1* VGA, 1* earthing rod, 1* ON/OFF Button, 1* DC 24V IN( 2PIN Phoenix connector), 2* RS485, 1* R-SW, Remote control ON/OFF, 1* PWR, Power LED, 4* COM RS232 LAN4: Intel I226V chip LAN1, LAN2, LAN3: RTL8111H chip |
| Expansion Slot | 1* PCI 1* PCIEX1 1*PCIEX16(PCIEX4 Signal) |
| WIFI | Support 2.4G/WIFI |
| BIOS | AMI BIOS |
| WDT | Support 256 levels (0~255), programmable |
| Operation System | Windows® 10, LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 24V INPUT |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Blue and Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C, surface air flow |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 2.47 kg |
| Gross weight | 2.8 kg |

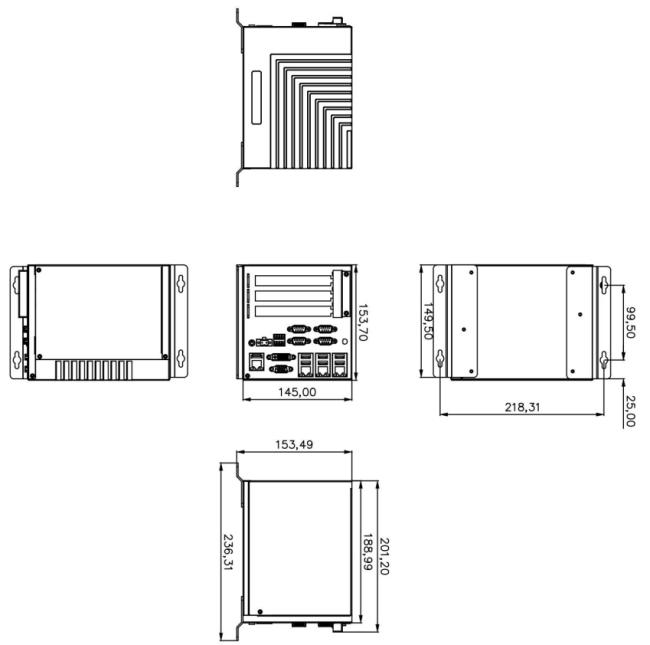

| Product Dimension | 201.2*153.7*145 mm |
| Packing size | 40*240*35cm |
| Accessories | Power adapter, Power plug, Screws, Installation bar |
| Other | |
| Mounting (options) | Vertical mounting |
| Warranty | 2 years warranty |
