Intel N5095 Industrial Mini PC with Fanless Design and Visual Inspection Application Supported
MOQ:
1 Piece
Delivery Time:
5-8 work days
Brand:
Sihovision
Product Description
Fanless Design and Visual Inspection Application Supported on Industrial Mini PC
Features:
Intel® N 5095
2* POE Intel I 226V
IO Optional for Visual inspection application
24V power supply, Fanless
Industrial grade working temperature -20℃-60℃
Specification
| Model: SM709-4 | |
| PC | |
| CPU | Intel® N 5095, 4 Cores, 4 Threads, Turbo 2.9GHz, Fanless |
| Graphics | INTEL UHD Graphics |
| Memory | Onboard DDR4 |
| Storage | 1 *M.2 (2280 SATA ) |
| Display | 1* HDMI Max 4096*2160@ 60 Hz, 1* VGA Max 1920*1200@ 60 Hz |
| Network | 1* LAN (RTL8111H) |
| POE | 2*PoE Intel I226V |
| I/O | 1* earthing rod, 1* DC 24V IN, 2* POE, 2* USB3.0, 2* USB2.0, 1* COM RS232, 1* HDMI, 1* VGA, 1* LAN, 1* RS232, 1* RS485, 1* Power LED, 1* Rmote control ON/Off 2* PoE: Intel I 226V Speed: 10/100/1000 Mbps 1* LAN : RTL8111H, Speed: 10/100/1000 Mbps |
| BIOS | AMI BIOS |
| WDT | Support 256 levels (0~255), programmable |
| Operation System | Windows® 10, LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 24V INPUT |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Blue and Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.53 kg |
| Gross weight | 2.8 kg |

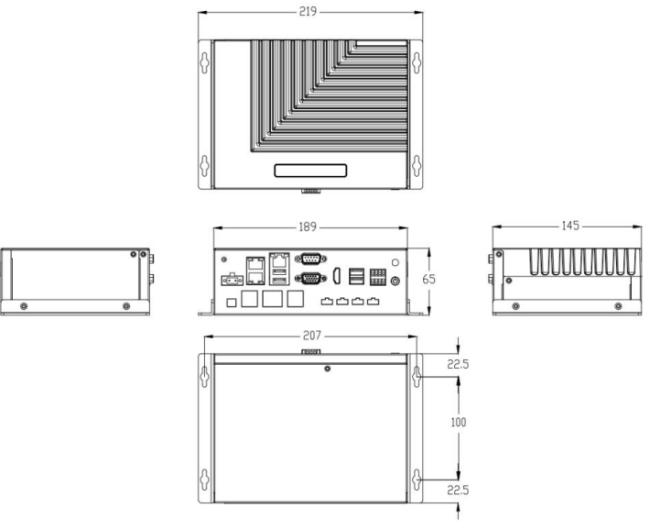

| Product Dimension | 189*145*65 mm |
| Packing size | 40*25*20cm |
| Accessories | Power adapter, Power plug, Screws, Installation bar |
| Other | |
| Mounting (options) | Horizontal installation/wall-mounted installation/DIN rails installation (the factory default is horizontal installation, if a wall-mounted bracket or a DIN rails bracket is required, it must be confirmed before shipping) |
| Warranty | 2 years warranty |
