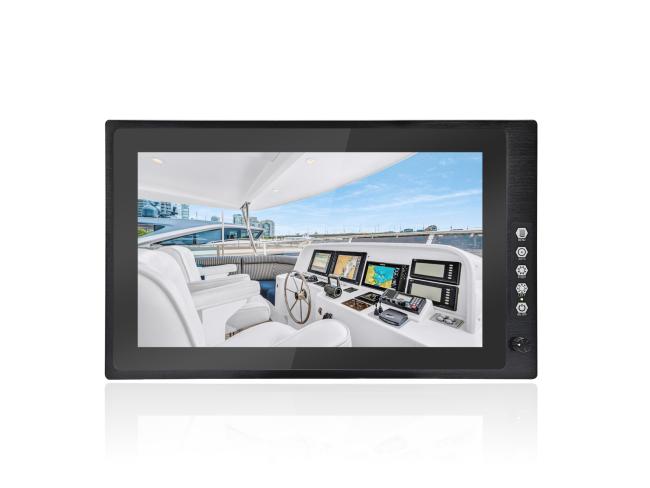

15.6 Inch IP65 Waterproof Monitor Industrial Projected Capacitive Touch Sreen Optical Bonding LCD 1000 Nits Displays With Anti Glare
15.6 Inch IP65 Waterproof Monitor Industrial Projected Capacitive Touch Sreen Optical Bonding LCD 1000 Nits Displays With Anti Glare
Features
1. Front aluminum alloy bezel with brushed finish+hard anodizing, UV-protection and Anti-discoloration treatment,
front IP65 waterproof and dustproof.
2. Industrial LCD panel, full view angle, 1000nits sunlight readable, with a dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
3. 10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.
4. EETI waterproof solution, the touch function can work well with drop water on the screen.
5.The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation
-20 °C ~ 70°C (-4°F ~158°F).
6. Screwable DC jack and 3 pin Phoenix Terminal, Support DC 9-36V.
7. Optical bonding, Prevent condensation and fogging inside the screen and increase transmittance.
Specification
| Model:SL156 | |
| LCD panel | |
| Panel size | 15.6" |
| Display active area | 343.5(W)×192.8(H) mm / 13.52 in × 7.590 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | Dimmer Knob for dimming |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical Bonding |
| External I/O Ports | |
| Video input | 1×VGA, 1×DVI, 1×HDMI |
| Audio in/out | 1×3.5mm Line-out, 1×3.5mm Line-in (2 x 2W Speakers) |
| Touchscreen interface | 1×USB |
| Power connector | 1×Screwable 9~36V DC jack, 1x 3 pin 9~36V Phoenix Terminal |
| Power Supply | |
| Working voltage | DC 9~36V |
| Power consumption | 30W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文,简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| Mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP rating | Front panel IP65 |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Net weight | Net weight 4.7 kg (10.361 lb) Gross weight 6.1 kg (13.448 lb) |
| Product Dimension | 430.5*257*55mm (16.948x10.118x2.165 in ) |
| Packing info | 1pcs/ctn 52*16*40cm (20.472×6.299×15.748 in ) 6.1 kg (13.448 lb) 2pcs/ctn 52*30*40cm (20.472×11.811×15.748 in) 13.7kg (30.203 lb) |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
