Industrial 1500 Nits Sunlight Readable Touch Screen / High Resolution Monitor
Price:
Negotiation
MOQ:
1 piece
Brand:
Shinho
Product Description
Industrial 1500 Nits High Brightness Monitor With 18.5 Inch Capacitive Touchscreen
Features
1) 18.5" LCD display
2) Robust design with steel front bezel and rear cover
3) P-CAP multi-touch screen (10-point)
4) Luminance 1500cd/m2 , sunlight readable
5) Wide operating temperature support -10~60°C
6) Front panel waterproof IP65 compliant
7) USB touch interface
8) Support Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
Application
Factory equipment
Self-service kiosk
Vending machine
Self-service storage cabinet
Retail store
Industrial automation
Specification
| Model:SL185 | |
| LCD panel | |
| Panel size | 18.5" |
| Resolution | 1366×768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (L/R/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires resistive touch, IR touch optional) |

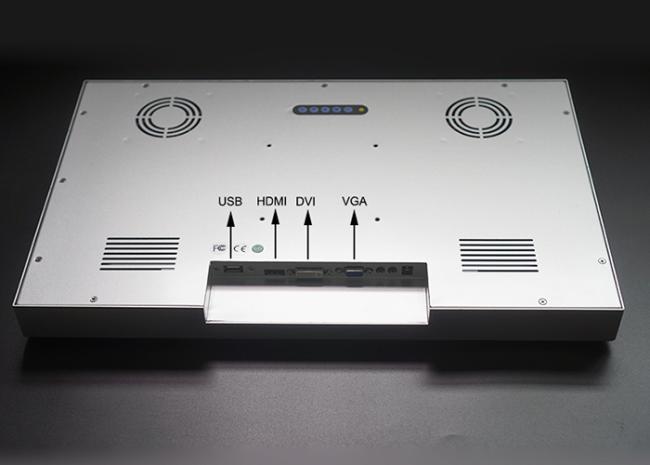

| Singal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | 1×DVI |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤30W |
| Enclosure | |
| Material | High strength cold rolled steel |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm,100×100mm |
| IP-grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 6kg |
| Gross weight | 8kg |
| Product Dimension | 48.74×30.78×4cm |
| Packing size | 55.6×38.5×15cm |
| Accessories | Power adapter, HDMI /VGA/DVI cable, USB touch cable. |
| Other | |
| Warranty | 1 year warranty |
| Certification | CE, FCC,RoHS |
