Outdoor Kiosk High Brightness Monitor 1500 Nits Luminance With Eco Light Sensor
1500 Nits Outdoor 21.5" LCD Touch Screen Monitor With With Eco Light Sensor
Features
1) 21.5" industrial LCD wide screen
2) Full HD 1920*1080 resolution
3) 10 points PCAP touch panel
4) Touch interface: USB (RS232 optional)
5) Luminance 1500nits, sunlight readable
6) Front panel IP65 waterproof and dustproof

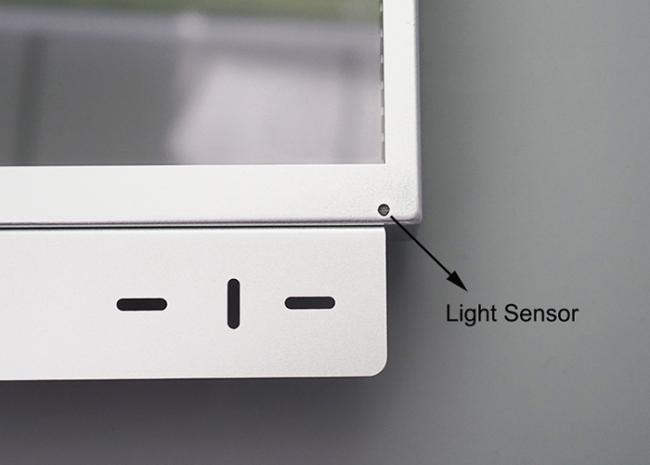

7) With Eco Light Sensor in front bezel
8) Signal ports: HDMI, VGA, DVI
Application
Outdoor Kiosk
Self-service ordering machine in outdoor
Human Machine Interface
Self-service payment machine
Semi-outdoor usage
CNC machinery control
Registered machine
Numerical control device
Other outdoor application
Specification
| Model:SL22 | |
| LCD panel | |
| Panel size | 21.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500nits,sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1×HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | High strength cold rolled steel case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 9kg |
| Gross weight | 12kg |
| Product Dimension | 50×30.34×2.8cm |
| Packing size | 65×47×20cm |

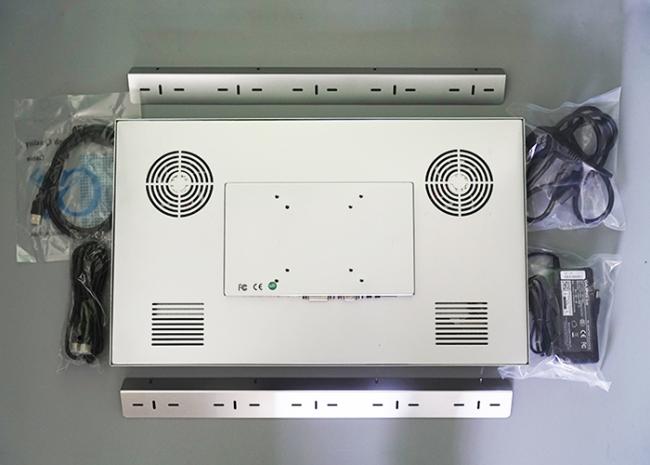

| Accessories | Power adapter, USB touch cable,HDMI cable, open frame kits |
| Other | |
| Mounting | open frame |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Detailed pictures
