Industrial Mini Computer Fanless Mini PC With Excellent Heat Dissipation
Fanless Industrial Mini PC with 6*USB, COM port for industrial application
Features:
1. Enclosed dust-proof,anti-corrosion,anti-vibration,Electromagnetic compatibility and high anti-interference ability. High reliability, continuous production,decreasing failure rate.
2. The motherboard adopts unique design,(watchdog),remote wakening,automatic reset
3. Aluminum alloy materials, drawing process,heat dissipation,Fanless ,noiseless.
4. High performance motherboard, 7x24 continuous operation. Working temperature:-20° ~65°.
5. Fast Network Connecting: Wireless & Wired Gigabit Lan.
6. Support Industry Standard Software, compatible with Win7810 and Linux.
7. Expandeddisplay for Multi-task ; Electricity Boot.
8. Graphics Processing Ability: Clearer Quality Image and full color.
9. Work well in harsh environment.
Application
It is ideal for applications such as industrial control cabinet, human Machine Interface, supervisory control and data acquisition, welding industry, CNC machinery control, numerical control device, industrial automation, sounding alarms, generating messages, capturing sensor input, transmitting data, displaying system status, controlling machines and stopping/starting processes.
Advantages
1. CPU is Intel Core i5 7360U fanless, noiseless and low power consumption.
2. Support DDR4 1866/2133 Max 16G, 1x MSATA, 1x 2.5 inch.
3. 6 COM ports (2x RS232/422/485 Optional)
4. Support DC 9～36V wide voltage input, support reverse polarity protection.
5. Support 4*USB 3.0, 4*COM, 2*PCI 32bit or 1*PCI 32bit + 1*PCI-E 4X.
6. All material is aluminium alloy, more light.
7. Full case with heatsink with superior heat dissipation.
8. Graphics Processing Ability: Clearer Quality Image and full color.
9. 25 ℃ to 65℃ wide temperature support, suitable for different industry application specially for harsh environment.
Specification
| Model: SM711P | |
| PC | |
| CPU | Intel Core i5 7360U (2 Cores, 4 Threads, 4MB L3 cache, Base 2.3GHz, Turbo 3.6GHz) |
| Memory | Support 1*DDR4 1866/2133 SODIMM, max 16GB |
| Storage | Support 1*MSATA, 1*2.5'' SSD/HDD |
| Display | 1x VGA, 1 HDMI built-in header |
| Display Chip | Integrated Intel HD Graphics 610/620 core graphics card |
| Network | 2*Intel i211-AT 10/100M/1000M Lan |
| I/O | 4*USB3.0, 2xUSB2.0, 2x LED Light, 1*Power Switch, 1*VGA/RST Button/3Pin Phoenix Terminal, 2*Intel Lan, 4*COM(Support 6*COM optional)(COM1, COM2 Support RS232/442/485 optional), 1x COMS |
| Expansion port | Support 1x MINI PCIE slot (optional WIFI/3G/4G), with SIM card holder Support 1x MINI PCIE slot (support MSATA) Optional interface (standard shipment does not include this interface): GPIO interface, audio interface, HDMI interface, 2 COM ports |
| Expansion slot(Choose one of them) | 1x PCIE X4 slot + 1x PCI slot (32bit), built-in 1x USB2.0 interface 2x PCI slots (32bit), built-in 1x USB2.0 interface 1x PCIE X4 slot + 1x PCIE X1 slot, built-in 1 USB2.0 interface |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Other | Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0 to 255) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤30W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Blue, color can be customized for bulk orders. |
| Operating Environment | |
| Temperature Range | operating: -10 to 50°C, storage: -10 to 60°C |
| Relative humidity | 0%~95% , non-condensing |
| Packing Details | |
| Net weight | 3.6kg |
| Gross weight | 4.2kg |
| Product Dimension | 215 * 185 * 115 mm |
| Packing size | 28*25*15cm |
| Accessories | Power adapter, Power plug, Wall mount bracket, user manual, warranty card |
| Other | |
| Mounting (options) | Embedded mount |
| wall mounting brackets (optional) | |
| Warranty | 2 years warranty |

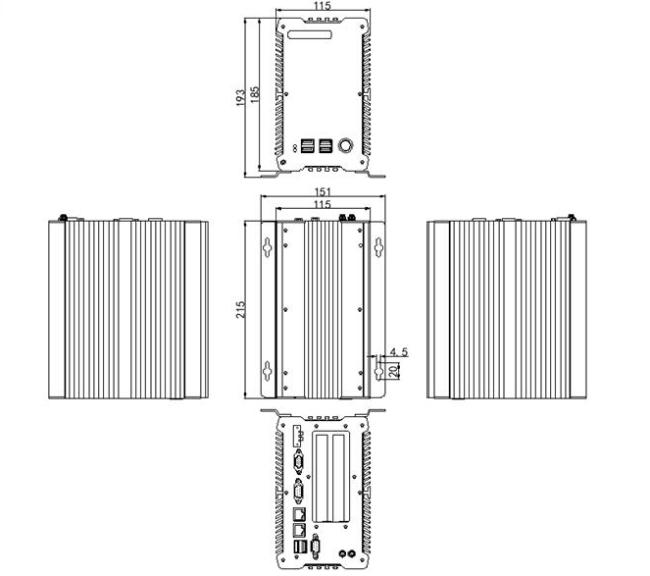

Drawing
