Sunlight Readable Outdoor Waterproof Touch Monitor With Fully Sealed Design
7'' Sunlight Reable Outdoor Waterproof Touch Monitor With HDMI
Feature
1. 7" industrial LCD panel.
2. Resolution: 1024*600 high resolution.16:9 aspect ratio.
3. Fully sealed Design. IP65 waterproof and dustproof.
4. HDMI interface.
5. Adopt high precision industrial 4 wire resistive touch screen, EETI touch controller
when water on the screen, the touch funciton also is working.
6. Support wide voltage: 12-24V DC input .
7. With waterproof speaker on the back case.
8. With button on the bezel,to adjust the brightness.
Customization:
9-36V wide voltage
VGA/DVI
Material: stainless steel
Size
Color: Black,Silver,White
Auto dimming
Dimmer for manual adjusting the brightness
Anti-glare
Advantage
Fully IP65 waterproof
1024*600 high resolution
1000 nits,sunlight readable
HDMI interface for connect the computer host
Specifications
| Model:SL07W | |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Contrast ratio | 400:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 4 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (PCAP touch optional) |
| Singal Ports | |
| VGA | optional |
| HDMI | 1×HDMI |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V-24V wide voltage |
| Power consumption | 10W |
| Enclosure | |
| Material | Aluminum alloy bezel+High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm |
| IP-grade | IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 1.3kg |
| Gross weight | 2kg |
| Product Dimension | 20×12×3.5 cm |
| Packing size | 33.0×21.6×8.7 cm |
| Accessories | Power adapter, touch pen , touch driver |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 75×75mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year |

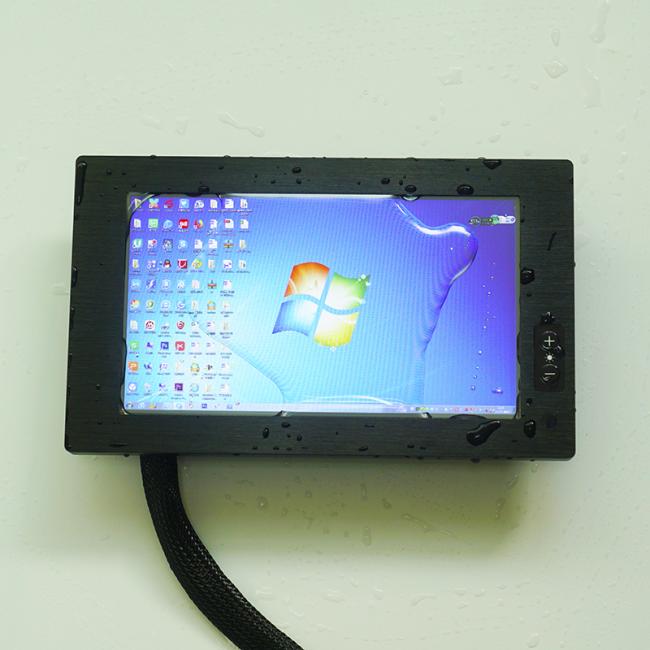

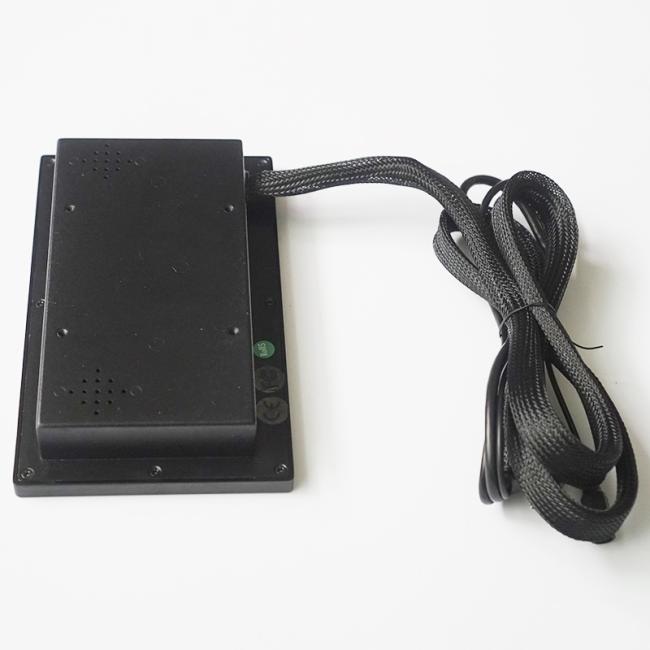

Pictures

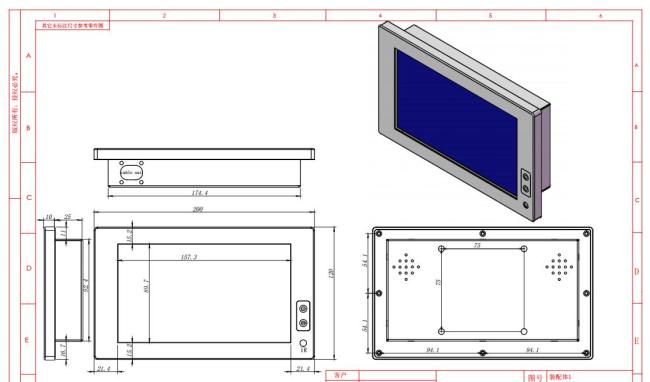

Drawing
