Silver High Brightness Monitor VGA / HDMI Signal Ports For Outdoor Applications
Silver High Brightness Monitor 10 Inch For Outdoor Applications
Feature
1. 10.1" TFT LED backlight LCD.
2. Robust and durable all-metal enclosure: aluminum alloy front frame and high strength cold rolled steel rear case.
3. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility
4. Demountable open frame for mounting, ideal for Kiosk/Self-service terminals
5. Brightness is upto 1000 nits.
6. Front panel is IP65 waterproof,dustproof and shockproof.
Application

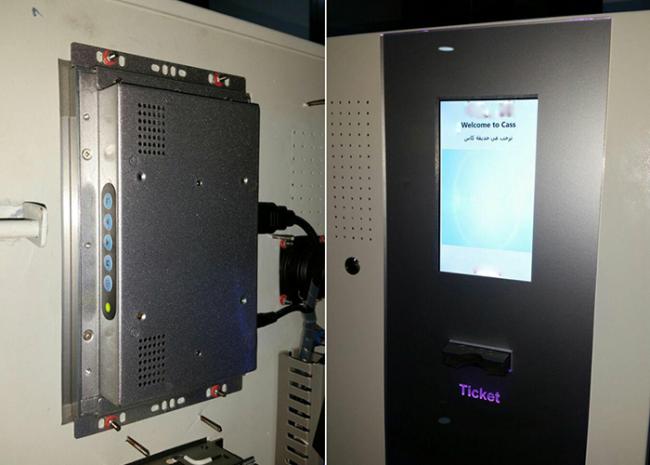

It is ideal for applications such as self-service kiosk, vending machine, self-service storage cabinet, retail store, outdoor inspection equipment, other applications in brightly-lit environments, marine/Sailing boat, tennis courts and other outdoor sporting grounds.
Advantages
Sunlight Readable LCD monitors are the best choice for applications where the sun's rays will be falling directly onto the face of the monitor, it;s specifically designed as a low-cost solution for use in bright sunlight
conditions. The 1000 nits brightness enable the user to see sharp, brilliant color video images even in bright ambient (indirect and reflected) light conditions.
Specifications
| Model:SL101 | |
| LCD panel | |
| Panel size | 10.1 inch |
| Resolution | 1366*768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness | 1000cd/m² , sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Singal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤10W |
| Enclosure | |
| Material | Aluminum alloy front frame + High strength cold rolled steel rear case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 1.5kg |
| Gross weight | 2.5kg |
| Product Dimension | TBC |
| Packing size | 33*40*19cm |
| 10pcs/carton weight:14kg carton size:48*56*25cm | |
| Accessories | Power adapter, HDMI / VGA cable, mounting frames |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 75×75mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 3 years warranty |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
Application
