12 Inch 3MM Thin Bezel Panel Mount Touch Screen PC 90% Luminousness For Kiosk
Price:
Negotiable
MOQ:
1 Piece
Brand:
Shinho
Product Description

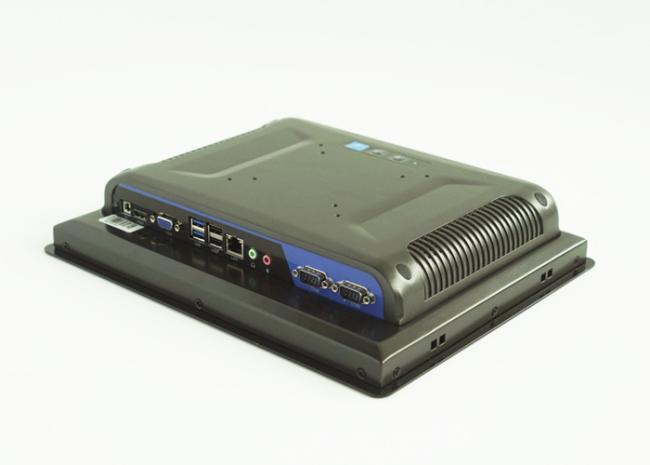

12 Inch 3MM Thin Bezel Panel Mount Capacitive Touch PC For Kiosk
Features
This 12 inch 3mm thin bezel panel mount capacitive touch PC is quite suitable for kiosk. The whole enclosure is made of aluminum alloy, which has bettter performance for thermal dissipation. We upgrade to holeless design to make sure the PC is dustproof. What's more, the front panel has IP65 grade waterproof protection.
Specifications
| Model:SC12 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2GB DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32GB SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 3xUSB 2.0, 1xUSB 3.0, 2xCOM RS232 |
| 1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver for choice |
| VESA mounting | 75×75mm/ 100×100mm |
| IP grade | Front panel waterproof IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.7kg |
| Gross weight | 4.2kg |
| Product Dimension | 319x257x59.5mm |
| Packing size | 430x380x180mm |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Applications
- Home automation
- Self payment kiosk
- Data acquisition system
- Manufacturing equipment
- Bulding management system
- Factory automation

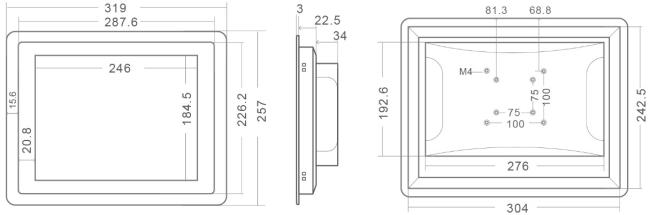

Drawing
More detailed picture
