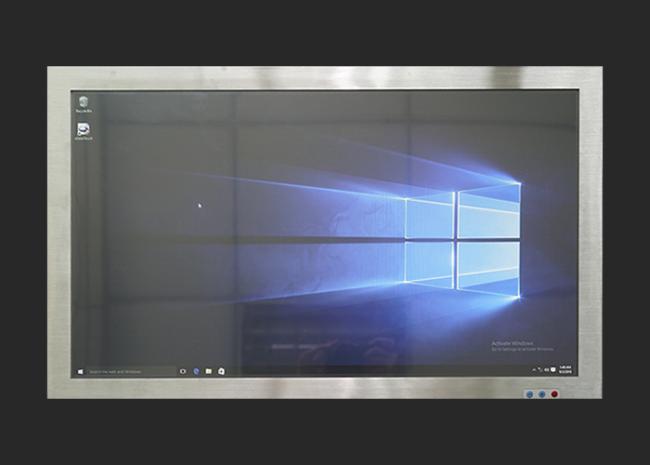

Full Sealed Industrial Touch Screen PC IP65 Stainless Steel With Wifi Bluetooth
Widescreen Full sealed IP65 Waterproof Stainless Steel Panel PC With Wifi Bluetooth
Features
1. IP65 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.
2. 24'' industrial LCD panel, wide viewing angle, high nits, true color. 1920*1080 high resolution.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference. it can touch with gloves and dirty hands.
4. High performance motherboard, 7x24 continuous operation.
5. Full sealed and fanless design, full IP65 waterproof.
6. 1000 nits, manual brightness. With 2 buttons: 1 button to turn up the light and another button to turn down the light.
7. Built in Wifi and Bluetooth which hidden inside.
8. I/O Interface: 3x USB, 1 x Lan, 1 x POWER DC.
Specification
| Model:SC24 | |
| PC | |
| CPU | Intel® Core, I3-6100U, 2.30 GHz, dual core, fanless |
| Memory | 8G DDR3 (2G, 4G optional) |
| Hard Drive Capacity | 256G SSD |
| Hard Drive Optional | SSD: 32G, 64G, 128GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| Bluetooth 4.0 | |
| I/O Interface | 3x USB, 1 x Lan, 1 x POWER DC |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 24" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Membrane switch |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (capacitive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | stainless steel |
| Color | Silver |
| VESA mounting | 100x100mm |
| IP grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 14kg |
| Gross weight | 22kg |
| Product Dimension | 58.89x35.61x5.8cm |
| Packing size | 73x54x23cm |
| Accessories | Power adapter, IP65 waterproof USB cable/Lan cable, power cord. |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Pictures
Drawing
Applications
Process control
Marine & Naval
Energy
Oil
Gas
Food & Baverage industry
Mining
Petro
Traffic Control System
Waste Water Management
