Sunlight Readable Waterproof Touch Screen Monitor Resistive 1500 Nits High Brightness
12 Inch Full IP65 Waterproof 1500nits High Brightness Resistive Touch Screen Monitor
Features
1. Robust and durable, all-metal enclosure, sealing design, full IP65 waterproof, Sealed I/O with cable set included.
2. 12'' Industrial LCD panel, high brightness 1500 nits, sunlight readable.
3. Adopt 5 wire resistive touch panel, stable, durable, anti-interference.
4. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
5. High performance mainboard, 7x24 continuous operation.
Specification
| Model:SL12W | |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits, sunlight readable |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( PCAP touch optional) |
| Singal Ports | |
| VGA | 1xVGA |
| HDMI | 1xHDMI |
| DVI | Optional |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | 25 W |
| Enclosure | |
| Material | Aluminium alloy front bezel + High strength cold rolled steel back case |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75x75mm / 100x100 mm |
| IP-grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 3.5kg |
| Gross weight | 4.5kg |
| Product Dimension | 31.9x25x5 cm |
| Packing size | 43x38x19 cm |

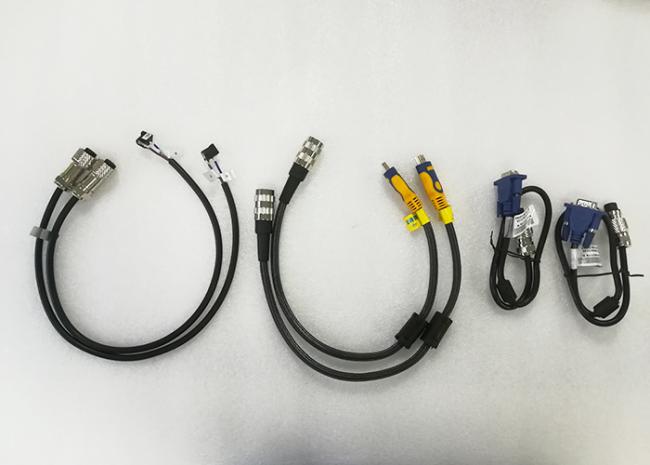

| Accessories | Power adapter, HDMI/VGA/USB cable |
| Other | |
| Mounting (options) | 1) Wall brackets for wall-mounting, VESA 100×100 mm |
| 2) Stable metal holder to support the monitor | |
| Warranty | 1 year warranty |

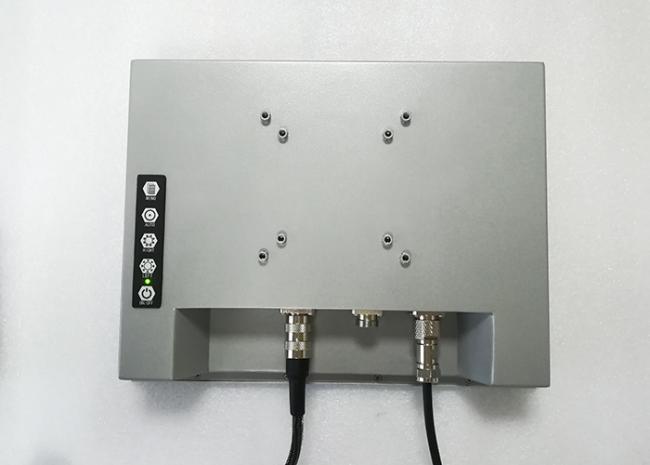

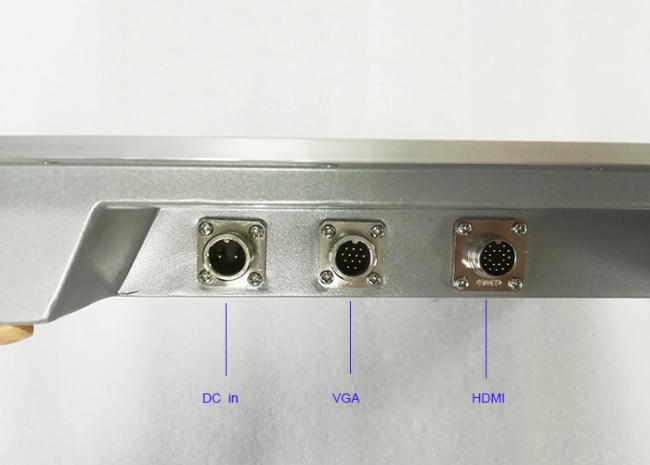

Pictures

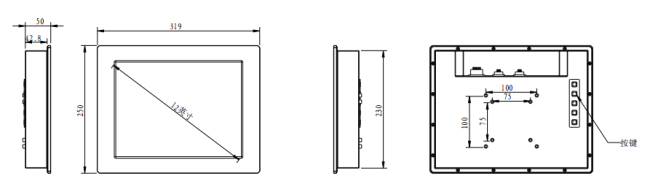

Drawing
Application
Crane
Ticket machine
Voting machine
Control Cabinet
Smart Lockers parcel locker
Face recognition system
Remote authentication
Control cabinet technology
Access control attendance
Intelligent photo album classification
Self-service medical ticketing machine
Automatic medical film taking machine
