Waterproof IP65 Panel PC 10.4 Inch 1000 Nits High Brightness Resistive Aluminium Alloy
10.4 Inch Full IP65 Waterproof 1000nits High Brightness Resistive Panel PC
Features
1. Sturdy and durable aluminum Alloy front bezel+High strength cold rolled steel back case.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 4 wires resistive touch screen, high precision, durable, anti-interference.
4. High performance motherboard, 7x24 continuous operation.
5. Full sealed and fanless design, full IP65 waterproof, sunlight readable.
Specification
| Model: SC104W | |
| PC | |
| CPU | Intel® celeron J1900, 2.0GHz, quad core, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI optional |
| I/O Interface | 3 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 10.4" |
| Resolution | 800x600 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Response time | 10ms |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 4 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (10 point capacitive touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 9-24V wide voltage |
| Power consumption | ≤25W |
| Enclosure | |
| Material | Aluminum Alloy front bezel + High strength cold rolled steel back case |
| Color | Black (white, Silver, color can be customized ) |
| VESA mounting | 75×75mm |
| IP-grade | Full IP65 |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 4.5KG |
| Gross weight | 6KG |
| Product Dimension | 27×20×4.5cm |
| Packing size | 43×37×17 cm |
| Accessories | Power adapter, waterproof VGA/RS232/LAN/USB cable, touch driver, touch pen |
| Other | |
| Mounting (options) | 1) Provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) Provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |

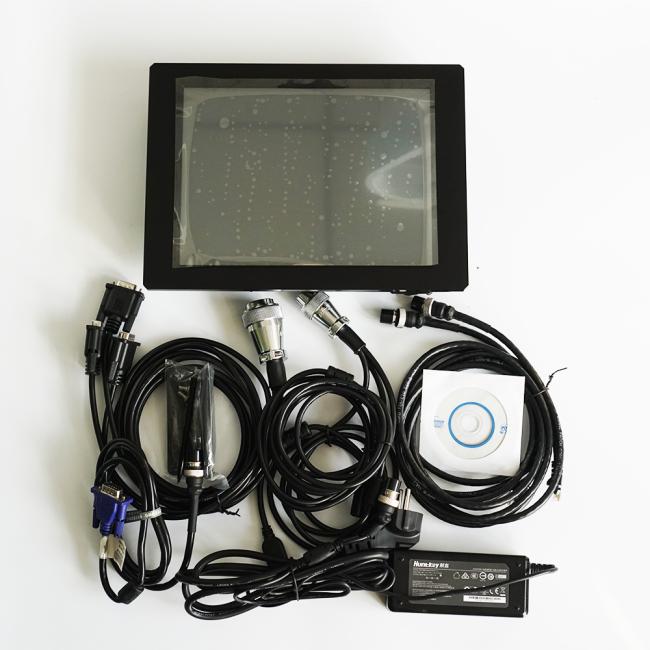

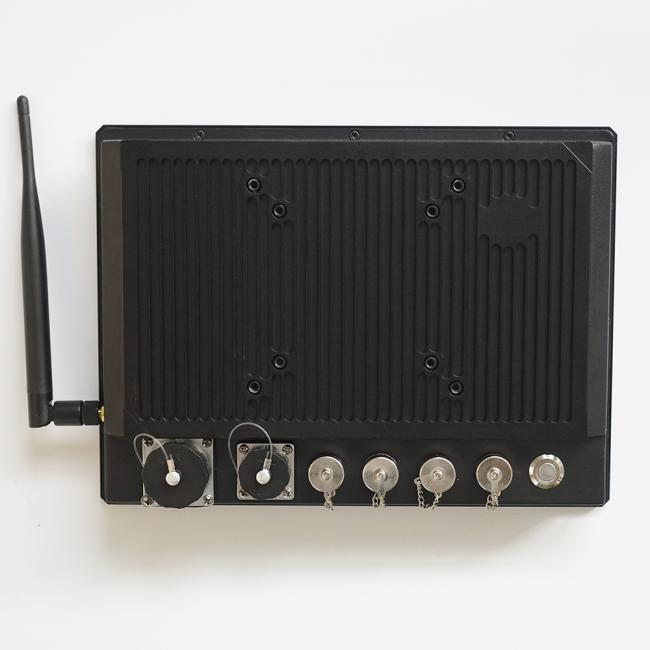

Pictures

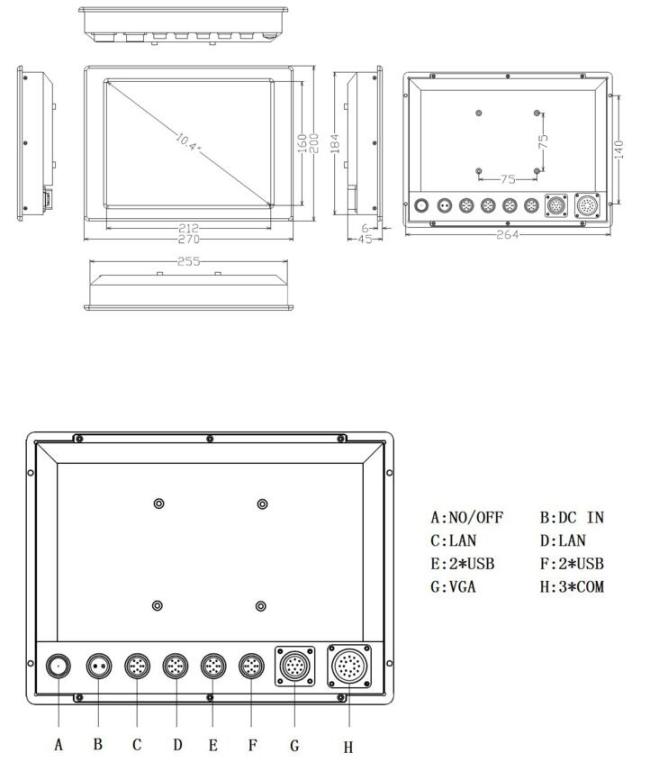

Drawing
Application
Yacht
Crane
Boat navigation
Outdoor Cabinet
Smart Lockers parcel locker
Face recognition system
Remote authentication
Control cabinet technology
Access control attendance
Intelligent photo album classification
Self-service medical ticketing machine
Automatic medical film taking machine
