Fanless Embedded Industrial Fanless Mini PC 2GB 4GB 8GB RAM Optional Low Power Consumption
Low Power Consumption Fanless Embedded Mini Box PC 2GB 4GB 8GB RAM Optional
Features
- Aluminum alloy die casting case, fanless design.
- High performance motherboard, 7x24 continuous operation.
- Intel Celeron J1900 CPU, quad core, 2.0GHz
- 1x HDMI + 1x VGA + 2x LAN + 2x COM + 4x USB
- 2x RTL8111E 1000M LAN card, support wake on LAN
- AMI 64MB Flash ROM, support RPL/PXE diskless boot, wake on LAN, electricity boot, WDT
- Support wifi and bluetooth optional (Not included in standard quotation)
- Compatible Windows 7/8/10, Linux
Application
Data collection system
POS machine
Industrial automation
Railway station
Machine Controller
Network security devices
Electronic storage
Warehouse management
Complex digital signage displays
Specification
|
Model: SM03 |
|
|
PC |
|
|
CPU |
Intel Celeron J1900 quad core processor, 2.0GHz |
|
Memory |
1x SODDR3L 1.35V (can up to 8GB) |
|
Storage |
Support 1x MSATA, 1x SATA |
|
Display |
1x HDMI, 1x VGA |
|
Display Chip |
Integrated Intel HD Graphics card |
|
Network |
2x Realtek 8111E LAN, support wake on LAN |
|
Audio |
Integrated Realtek ALC662 6 sound channel |
|
I/O Interface |
1x USB 3.0, 3x USB 2.0, 2x RS232 COM, 1x HDMI, 1x VGA, 2x RJ45 LAN, 1x Audio, 1x DC 12V port, 1x Power switch |
|
I/O Interface |
1x USB 3.0, 5x USB 2.0, 1x RS232 COM, 1x HDMI, 1x VGA, 2x RJ45 LAN, 1x Audio, 1x DC 12V port, 1x Power switch |
|
Expansion |
2x Mini-PCIE, support MSATA and WiFi |
|
BIOS |
AMI 64M DPI Flash ROM |
|
WDT |
Support hardware reset (256level, 0~255 sec) |
|
Operation System |
Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤40W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage: -10 to 60°C |
|
Relative humidity |
0%~95% , non-condensing |
|
Packing Details |
|
|
Net weight |
0.65kg |
|
Gross weight |
1.25kg |
|
Product Dimension |
13.4*12.6*3.8cm |
|
Packing size |
19*15*15cm |
|
Accessories |
Power adapter, VESA brackets, screws, user manual, warranty card |
|
Other |
|
|
Mounting (options) |
VESA brackets (free) |
|
open frame mounting (optional) |
|
|
Warranty |
1 year warranty |

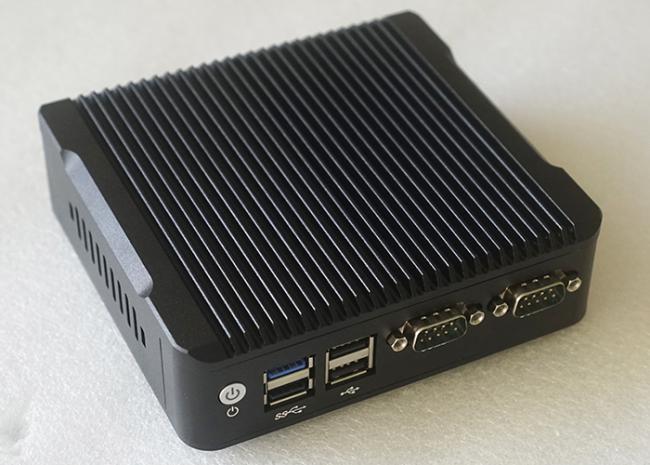

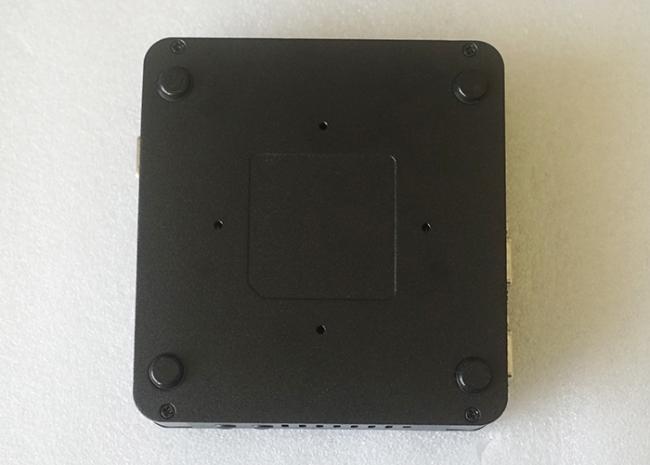

Pictures
