Aluminim Alloy 10.4 Inch Industrial Resistive Touch Screen Monitor 3MM Front Bezel
Front IP65 Waterproof 10.4 Inch Industrial Resistive Touch Screen Monitor
Features
1. Ultra-thin 3MM front bezel, beautiful for embedded mounting.
2. Alluminum Alloy enclosure, dustproof, shockproof and anti interference
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. VGA+HDMI+DVI interfaces, USB for touch.
5. 12-24V wide voltage support.
Specification
| Model: SL104 | |
| LCD panel | |
| Panel size | 10.4" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (Capacitive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 2.3kg |
| Gross weight | 3.8kg |
| Product Dimension | 28.8*23.1*5.15cm |
| Packing size | 43*38*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

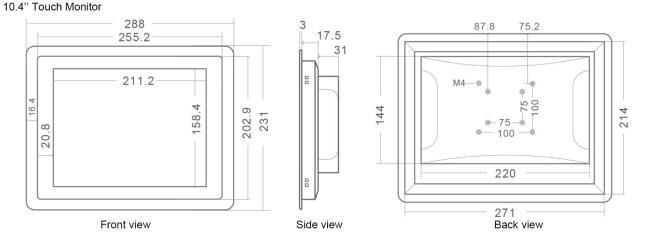

Drawing
Application
Robotic
Data Acquisition
Motion Control System
Laser Measurement Systems
Food Processing Vision Inspection
Automated Machine Vision Systems
Supervisory Control And Data Acquisition(SCADA)

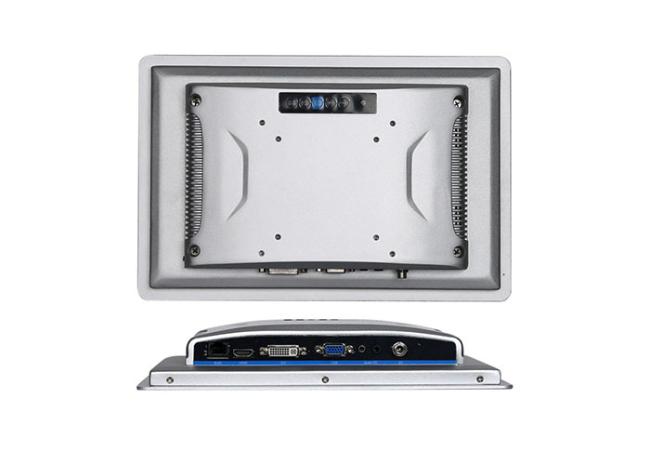

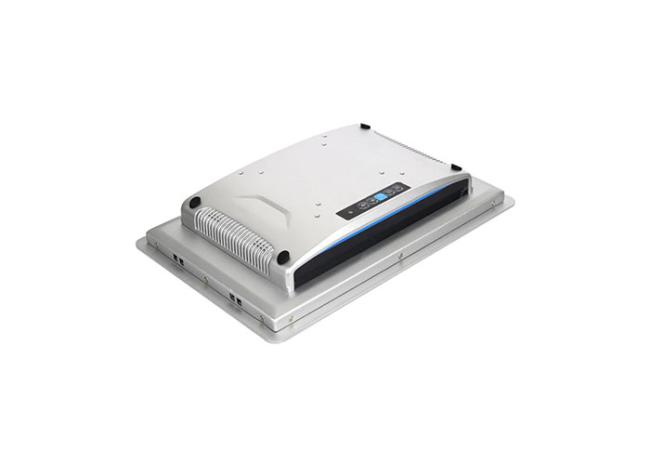

Pictures
