CNC Control Resistive Touch Monitor Automation 15 Inch Free Bezel Industrial
CNC Control Automation 15 Inch Free Bezel Industrial Resistive Touchscreen Monitor
Features
1. Free bezel design, front IP65 dustproof and waterproof.
2. Anti-EMI, corrosion resistance, excellent performance of heat dissipation.
3. High performance motherboard, 7x24 continuous operation
4. English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
5. Optional: Starting up logo, higher resolution, high brightness(1000nits or higher) wide view angle(178°/178°/178°/178°).
6. Optional: Wide temperature(-20-70℃), super wide temperature(-30-85℃), anti-glare, anti-vandal, light sensor.

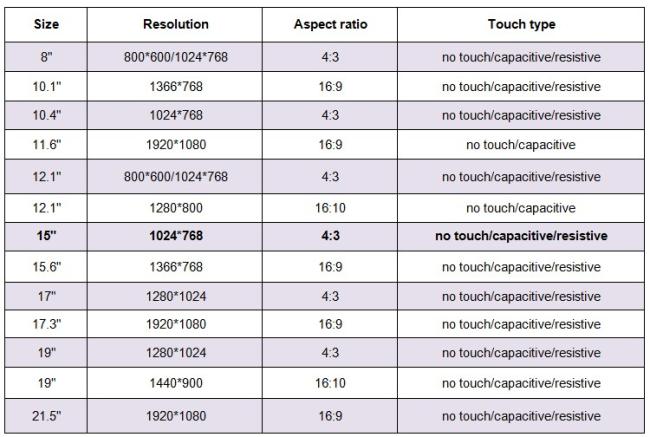

Product line
Specification
| Model: SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (capacitive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤25W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 3.2kg |
| Gross weight | 4.7kg |
| Product Dimension | 35.05*29.64*5.97cm |
| Packing size | 47*44*18cm |
| Accessories | Power adapter, Power cord, VGA cable, USB touch cable, user manual, warranty card |
| Other | |
| Mounting Way | Wall mounting brackets (optional) |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

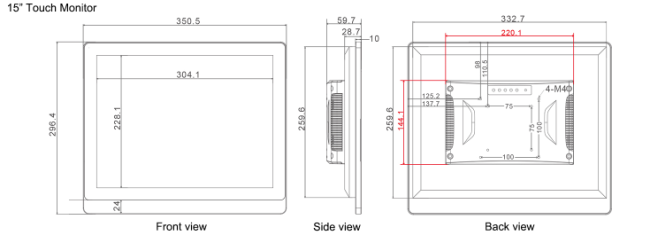

Drawing
Application
SCADA
Ticket machine
Sorting machine
CNC automation equipment
Material Tracking Databases
Pharmaceutical Glassware Inspection
Automatic testing equipment for packaging bottles

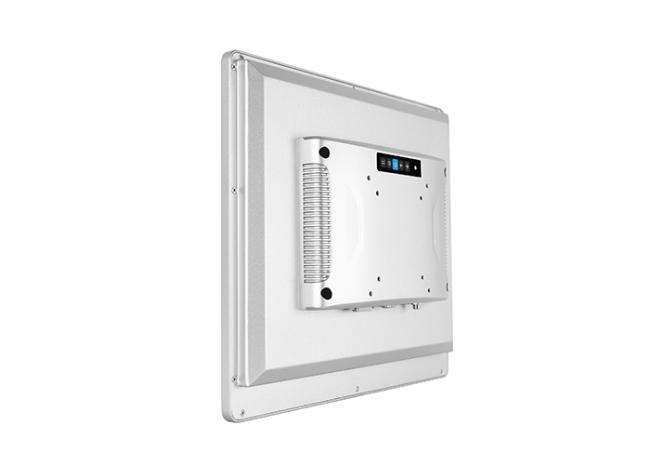

Pictures
