Aluminum Alloy Resistive Touch Monitor , USB LCD Touch Screen Monitors 21.5''
OEM 21.5 Inch Resistive Touch Screen Monitor Cheap 22 Inch USB LCD Touch Screen Monitors
Features
1. Robust and durable Brushed aluminum alloy bezel +High strength cold rolled steel back case, shockproof, excellent heat dissipation .
2. Industrial LCD panel, high brightness, low energy consumption
3. Adopt 5 wire resistive touch panel , stable, durable, anti-interference.
4. High performance mainboard, 7x24 continuous operation.
5. Suitable for various kinds of severe environment.
Specification
| Model:SL215 | |
| LCD panel | |
| Panel size | 21.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits |
| Contrast ratio | 3000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( PCAP touch optional) |
| Singal Ports | |
| HDMI | 1×HDMI |
| VGA | 1×VGA |
| DVI | 1×DVI |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | 25 W |
| Enclosure | |
| Material | aluminium alloy front bezel +High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75/ mm100×100 mm |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 4kg |
| Gross weight | 5.5kg |
| Product Dimension | 56.4x35.6x4.8cm |
| Packing size | 74×45×19 cm |
| Accessories | Power adapter, HDMI/USB cable |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100 mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |

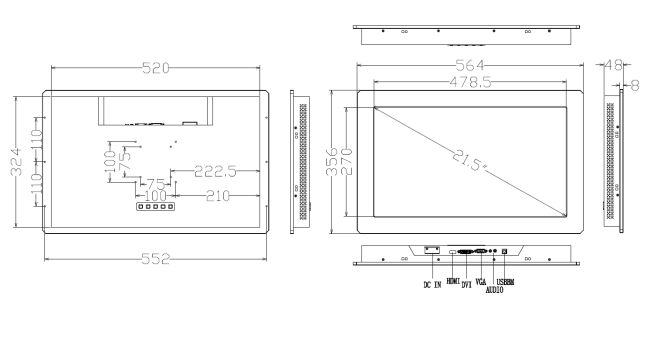

Drawing
Package
Certifications
OEM & ODM
About Shinho Electronic
Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
