12 Inch RS232 35W 1000cd/M2 1024x768 Rugged Touch Monitor
Capacitive Touch Screen 1000 Cd/ M2 12 Inch Open Frame Rugged Touch Monitor
Features
1. Industrial LCD panel, wide viewing angle, high nits, true color.
2. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
3. High performance motherboard, 7x24 continuous operation.
4. Support wall mounting,embedded mounting,desk stand mouting etc.
5. 1000 nits sunlight readable.
6. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
8. Support wall mounting, embedded mounting, desk stand mounting etc.
Specification
| Model:SL12 | |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |

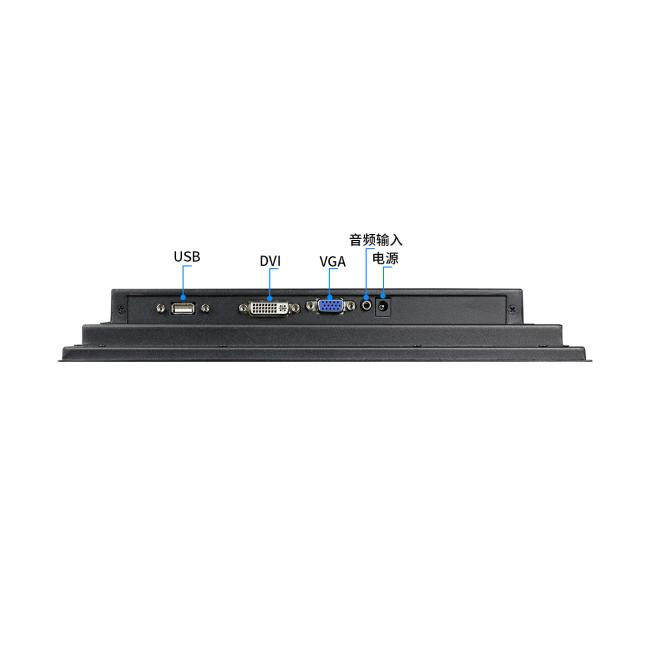

| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| USB | 1×USB |
| Audio in/out | Support |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 100×100mm |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Other | |
| Mounting | open frame |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
| Accessories | Power adapter, power cord, USB touch cable, DVI/ VGA cable, embedded screws |
Accessories:
Power cable, Power adapter, Video cable, Screws
Products line:
Certifications
OEM & ODM
Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
