FCC HDD AMI EFI Desktop Mini Pc 128GB SSD 15W Dual Lan Industrial Computer
Desktop Mini Pc Computer 4GB RAM 128GB SSD Dual Lan Industrial Computer
Key Features:
High Temperature Tolerance
Even without a fan, Industrial Computer Rugged products can operate in temperatures from -20 to 60˚C in the field.
Dual Display
Support synchronous and asynchronous dual display
1*VGA+1*HD full HD 1080P dual display
Watchdog Timer Utility
Available on Industrial Computer, this utility monitors and restarts an unresponsive application or OS, protecting the end user experience.
Mounting Options
The Industrial Computer chassis offers multiple mounting options, including VESA-ready wall, and DIN rail mounting.
24/7 Operation
Industrial Computer are built to last and qualified for 24/7 sustained operations — a must-have for commercial and industrial use cases.
Wide Voltage Optional
Industrial Computer feature 12v to 24v DC input with overvoltage protection and dirty DC tolerance.
Specification
| Model: SM15 | |
| PC | |
| CPU | Intel Celeron J1900, quad core, 2.0GHz |
| Memory | 1*DDR3 memory slot,Max. Support 8G |
| Storage | 1*M.2 2280 slot,1*2.5”HDD |
| Display | 1x HD, 1x VGA |
| Display Chip | Integrated Intel HD Graphics 620 |
| Audio | Integrated Realtek ALC662 6 sound channel |
| Network | 2*Intel i211-AT 10/100/1000M LAN |

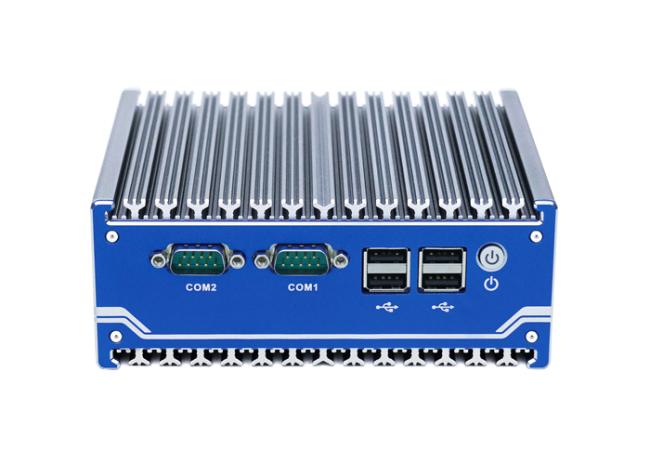

| Front I/O | 2*COM( RS232/485 is Optional), 2*USB2.0, 1*Power Switch, |

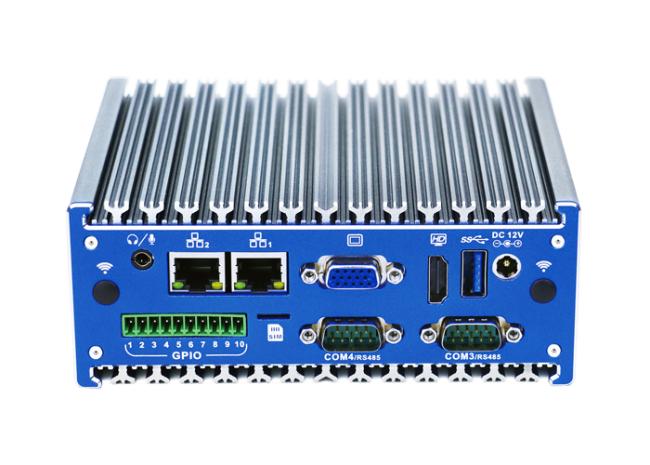

| Rear I/O | 1*DC-IN 12V, 1*USB3.0, 1*HD, 1*VGA, 2*Intel 1000M LAN, |
| 1*Audio ( Support Mic and Speaker at the same time) 1*SIM slot | |
| 1*10 PIN Phoenix terminal(4 in 4 out GPIO) | |
| Expansion Slot | Support 1*M.2 2280 slot(Support M.2 PCIE X4 and M.2 SATA SSD) |
| Support 1*MINI PCIE slot(WIFI/3G/4G choose one from three, embedded SIM socket | |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Grey+Blue |
| Operating Environment | |
| Temperature Range | operating: -20 to 60°C, storage: -20 to 60°C, surface air flow |
| Relative humidity | 0%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.2 kg |
| Gross weight | 1.7 kg |
| Product Dimension | 14.8 * 12.5 * 5.8 cm |
| Packing size | 20*16*13cm |
| Accessories | Power adapter, Wall mount braket, rail mounting kits, user manual, warranty card |
| Warranty | 1 year warranty |
Pictures
