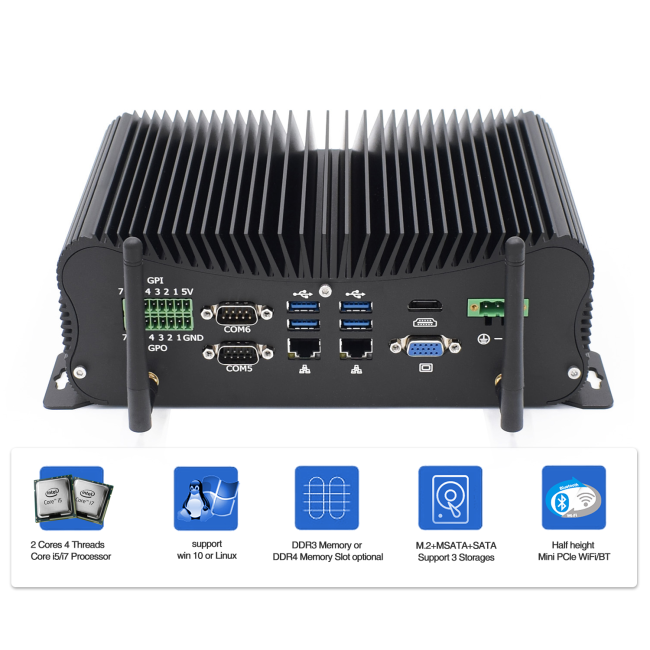

PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box
Fanless Industrial Mini Pc Intel i5 i7 GPIO LPT 6 COM 2 Lans 8 USB Box Pc
Quick Details
1. Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect.
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others.
3. Entertainment: support blu ray 1080P and 4k video play, XBMC and others.
Feature
Auto Power On for building scheduled tasks and events on the Mini PC.
PXE for assembling software on the Mini PC from a network.
WOL for awakening the Mini PC remotely from a LAN port.
RTC(Real Time Clock) provides an accurate date and time, in addition toallowing a computer to regulate the timing and speed of all its functions.
Operating
LPT Interface: The Rugged Mini PC is with a LPT(Line Print Terminal) for a parallelport connection to printers, scanners, video cameras, or other devices.

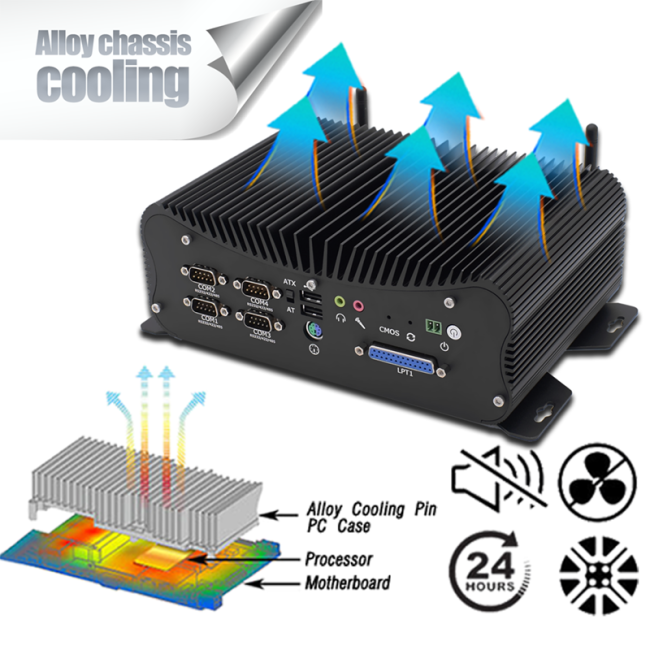

9-36V Wide Voltage Input: Zero maintenance requirements,7*24 hour working, strong alloy case,9 to 36vwide voltage power input functions make the fanless PC most suitable for dustyand industrial environments.
Specification
| Model: SMC1 | |
| PC | |
| CPU | Intel i3-6157U |
| Optional | Intel i3-7167U, i5-6360U, i5-7267U, i5-7287U, i5-8250U, i5-8365U, i7-7500U, i7-8559U |
| Memory | 2*SO-DIMM DDR4 Slot, 4GB DDR4 (8G 16GB 32GB Optional) |
| Storage | 1*MSATA/M.2, 1*SATA3.0 slot, 64GB SSD (128G 256G 512G Optional) |
| BIOS | American Megatrends Inc. 5.6.5 |
| Operation System | Windows 8/10, WES 10, LINUX |
| PXE | YES |
| Network Support | Intel i210/i211 Gigabit Network Connection |
| Video | Intel HD Graphics |
| Audio | Realtek ALC662 @ Intel Bay Trail SoC - HD Audio Controller |
| Mini PCIE | 1*mini PCIE-half port, 1*mini PCIE-full port |
| Antenna | 2*inner RF cables and 2*external antennas |
| Functions | Watchdog, AWAL, RTC, WOL(ATX mode) |
| I/O Interfaces | |
| Switch | 1*Power On/Off Switch |
| Power | 1*3pin phoenix terminal power block DC In |
| Button | 1*ATX/AT quick switch |
| USB | 4*USB3.0, 4*USB2.0 (2xUSB2.0 inside) |
| PS/2 | 1*PS/2 |
| Display | 1*VGA, 1*HDMI |
| LAN | 2*RJ45 GBE LAN |
| COM | 6*DB9 COM, COM1~4 can change to RS232/422/485 from BIOS |
| SIM | 1*embedded SIM card slot onboard |
| GPIO | 1*GPIO |
| LPT | 1*LPT |
| Audio | 1*MIC, 1*SPK |
| Others | 1*Reset, 1*CMOS clear button, 1*2Pin phoenix terminal power supply input |
| Power Supply | |
| External Power Supply | AC 100 - 240V 50-60Hz |
| Working voltage | DC +9V to +36V DC wide voltage |
| Power consumption | 15W/28W |
| Enclosure | |
| Material | Aluminum alloy |
| Color | Black, Silver, others Optional |
| Operating Environment | |
| Working temperature | -20°C to 60°C |
| Storage temperature | -30°C to 70°C |
| Relative humidity | 10-90% (npn-condensing) |
| Packing Details | |
| Net weight | 1.3 kg |
| Gross weight | 3.5 kg |
| Product dimension | 150*83*224mm |
| Other | |
| Mounting | 4 mounting holes on case |
| Warranty | 1 year warranty |
Pictures
FAQ
Q: Can I get some samples?
A: We are honored to offer you samples for quality check, MOQ is 1 set, welcome to order via the link directly.We also provide free OEM service for your sample order, just feel free to contact our Sales here.
Q: How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very begining of manufacturing and 1 Years Wareanty.
Q: How to solve the product problem?
A: Welcome to contact our Sales about any problems, they will provide nice service to each customer directly.
