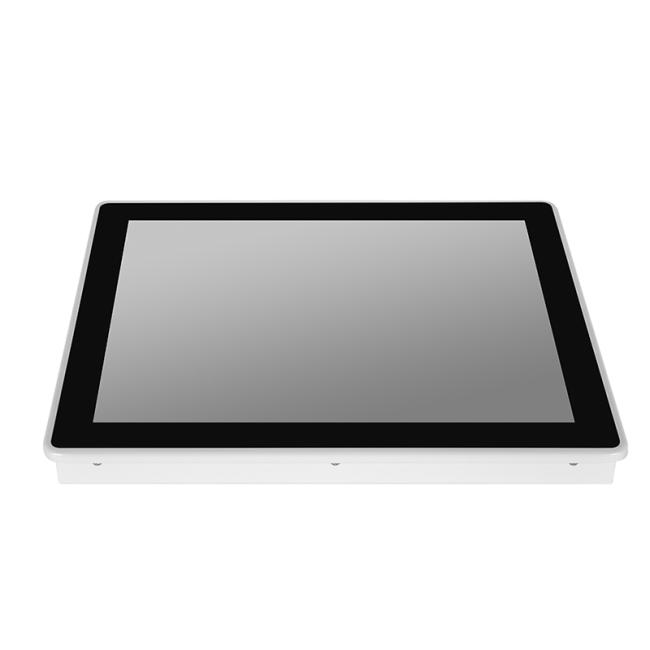

Aluminum Alloy Embedded Tablet PC 1024×768 Waterproof 300nits Medical
Embedded Medical Pc Tablet Mobile Workstation Medical Computer For Hospital Cart Nursing Trolley
Features
Highprecision aluminum alloy diecasting
Specially designed forindustrial use,fineworkmanship, anti-scratch,anti-alcohol,anti-acid and anti-corrosion.
Fully enclosed finheat dissipation structure
lndustrial-grade patented penetrationtechnology and fin heat dissipationstructure increase the heat dissipationeffect byseveraltimes.
Waterproof tape on the back
Effectively block the penetration ofwater vapor and dust,effectivelyalleviate shockand vibration.
Technical Details
| Model:SC121 | |
| PC | |
| CPU | Inte Celeron J1900 quad-core, Option: Inte Core i3/i5/i7 |
| RAM | 2G DDR3(4G/8G/16G options) |
| Storage | 32G sSD(64/128/256/512G options) |
| System | Windows7/8/10,linux,Ubuntu |
| Chipset | Intel Bay trail soc Chipset |
| Network support | 10M/100M/1000M adaptive Ethemet, wifi,support3G/4G |
| wireless wifi | 24G(dual-band2.4/5G options) |
| Bluetooth | options |
| Speaker | dual speakers |
| Graphics card | Integrated HD graphic display core |
| Management Settings | Support poweron, remote wake-up, automatic reset function |
| IO interface | 1*USB3.0, 3*USB2.0, 1*COM, 1*LAN, 1*HD-MI, 1*VGA, 1*SIM, 1*Audio, 1*DC(12-36V) |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch optional) |
Application Environment
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC12V /5A, Support 12V-36V |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 70°C |
| Relative humidity | 20%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Other | |
| Accessories | Clip accessories, power cord, power adapter, warranty card |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Products Show
Application
Hospital intelligent self-service, Smart medical cart, Mobile chest X-ray CT equipment, Automatic chemical analyzer, Computed Tomography, Digital subtraction angiography, digital radiography, Pathological diagnosis, rehabilitation training etc..
FAQ
Q: Are you a trading company or factory?
A: We are a professional industrial / medical /vehicle / monitor/ panel/android touch screen PC manufacturer started from 2012.
Q: Are the pictures real picture?
A: The pictures of all products we sell are 100% real shoot, If you want to be our sales agent, you can cooperate with our
company.
Q: What’s your Payment Terms?
A: TT or Paypal, Western Union.
We are trade assurance supplier on Alibaba, you also can use trade assurance.
Q: How long is your Lead Time ?
A: Sample within 3 days.
Bulk production is 5-15 days according to quantity.
Q: Do you support OEM / ODM?
A: Yes, pls let us know your detailed requirements then we can provide you the solution.
