Anti UV 1200 Nits RCA Video Monitor AR Glass With Remote Controller
Anti UV 1200 Nits Touch Monitor AR Glass 3 RCA Video YPbPr With Remote Controller
Feature
1. Industrial LCD panel, high brightness 1200 nits, sunlight readable.
2. Covered with AR glass, optical bonding, anti-reflective, anti UV, vandalproof
3. Front waterproof IP65
4. With remote controller for OSD
5. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
6. Interfaces: 1xVGA, 1xHDMI, 3xRCA video, YPbPr
7. High performance mainboard, 7x24 continuous operation.
Specification
| Model:SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1200 nits, sunlight readable |
| Brightness control | with remote controller to adjust brightness |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/70°/70° (R/L/U/D) |

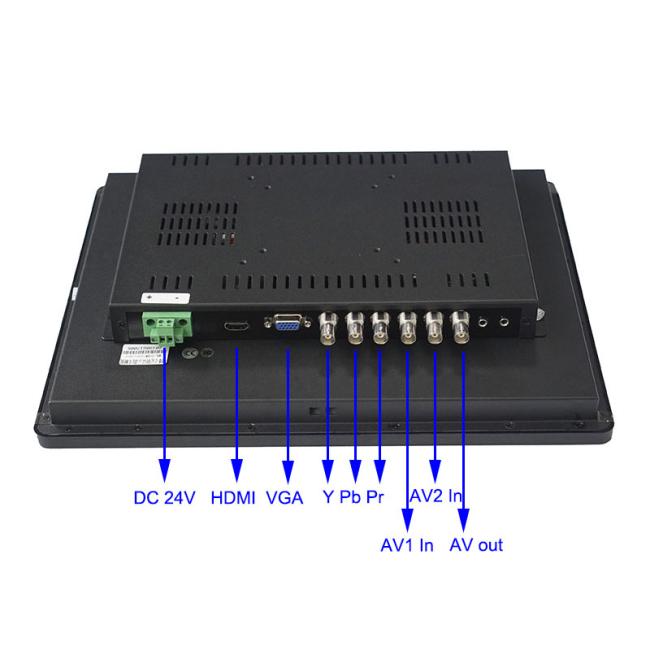

| Singal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| YPbPr | YPbPr |
| RCA video | 3x RCA video (2xVideo In, 1x Video Out) |
| Audio | Audio in/out |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 24V Phoenix terminal 2 Pin (DC 12V optional) |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminium alloy front bezel + High strength cold rolled steel back case |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75x75mm / 100x100 mm |
| IP-grade | Front waterproof IP65 |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 90%, storage: 5% to 90% |
Advantage
Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic team, we want to connect with all our customers.
Experience: As a dynamic team, through our more than 10 years of experience in this market.
OEM: Accept ODM/OEM.
Samples: We provide of this product from our source.
Production time: within 7 working days after confirming the order.
FAQ
Q: Where is your factory locate in?
A: We manufactory is located in Guanlan Street, Longhua District, Shenzhen city,Guangdong province, China.
Q :Can you provide OEM, ODM service and professional production solving solution?
A: Yes, OEM and ODM services is workable for each customer. The professional technical team can do it for customer as what it would be achievement what would be done by customer.
Q :What certificate have been approved?
A: FCC, CE, ROHS etc have been approved for different market area in the world. If any special certificate in any local, we also can provide the files and documents for cooperation customers to get approved for the certificate as what local government requested.
Q :What is the lead time for sample order and bulk order?
A: For sample order, usually 3-5 days for preparing producing and testing if the request item out of stock.
For bulk order, usually the delivery time within 15 days within 500 pieces with everything of the details have been confirming.
