Full Waterproof IP65 Industrial Box PC DC 24V Embedded For Outdoor Marine Boat
Full Waterproof IP65 Industrial 24V Box PC For Outdoor Marine Boat
Quick Details
1. Full Aluminum alloy enclosure, compact, low weight design, excellent heat dissipation.
2. Sealed construction full IP65 waterproof ,fanless design, noiseless, low-power consumption design.
3. Suitable for harsh operating environment , dustproof,anti-corrosion, shockproof, anti-vibration.
4. High performance motherboard, 7x24 continuous operation
5. Wide operating temperature support (-10°C~60°C)
6. With high electromagnetic compatibility and anti-interference capacity.
7. Expanded displays for Multi-task. Auto boot, remote wakening support.
| Model: SM623W | |
| PC | |
| CPU | Intel® Core I7-6500U, dual core, 2.5GHz, Fanless |
| Chipset | Intel® Skylake-U series SOC |
| Memory | 8G DDR3 (2G,4G,optional) |
| Hard Drive Capacity | 256G SSD (32G,64G,128GB SSD optional) |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Network | 2×Realtek RTL 8111E Gigabit Ethernet controller |
| Front I/O Ports | 4*USB, 2*RJ45, 1*DC in,1*Power Button |
| Rear I/O Ports | 3*COM, 1*HDMI, 1*VGA |
| Resolution support | above 800*600 |
| Hd support | 1080P |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 24V |
| Power consumption | ≤30W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver, white, color can be customized |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage : -20 to 70°C |
| Relative humidity | 20%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 2.5kg |
| Gross weight | 5kg |
| Product Dimension | 21.4*20.4*5.2cm |
| Packing size | 43*38*19mm |

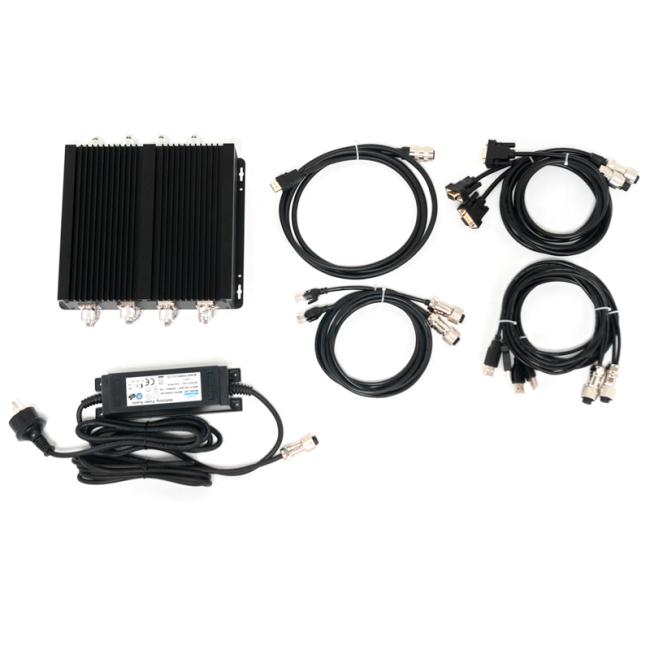

| Accessories | Power adapter, full IP65 waterproof cable sets |
| Other | |
| Mounting (options) | Built-in mounting bracket |
| wall/desking mounting brackets (optional) | |
| Warranty | 1 year warranty |
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions:
1. All products have 1 year warranty, no artificially damaged.
2. If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.
FAQ:
Q: Whether your industrial Panel pc support the OEM / ODM?
A: Yes, our industrial panel PC support the customization with whole machine IP67-IP65, Sunlight readable 1000-1500nits, Whole machine stainless steel materials, fanless structure, optical bonding, AG/ AR/ AF function, 4G/3G WIFI/ GPS/ etc.
Q: Where is your Industrial Tablet pc apply?
A: Restaurant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Automated industry, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc.
Q: What is the main size for your panel pc and industrial monitor?
A: Optional 7",8", 10.1", 10.4",12", 13.3" 15", 15.6", 17" 19" 21.5" 22" 24" 32" including square and wide screen.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the boot logo, we can do silk screen or laser engraving LOGO on the case. MOQ is 1pcs.
Q: What kind of inspection you can provide?
A: We has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all panel pc and monitor are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Guarantee, lifetime online technician supports and repair services.
