Smart Electric Motorcycle Battery Charger 36V 4A Aluminium Silver or Black Casing 4 Steps Charging
36V 4A Smart Lithium ion Battery Charger For Electric Motorcycles, Aluminium Silver or Black Casing, 4 Steps Charging
Manufacturer:
Danl New Energy Co., Limited
Brand:
Specifications:
AC input voltage: 110 - 240Vac
AC input freq.: 50 / 60 Hz
Rated output: 36V 4Amps
Max charging voltage: 42V / 43.8V
Dimensions(LxWxH): 155 x 90 x 50 mm
Net weight: 0.9 KG
Housing: Aluminum
Color: silver or black
Techonolgy:
High Frequency Switching Mode Power Supply.
Intelligent micro-processor controlled.
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.

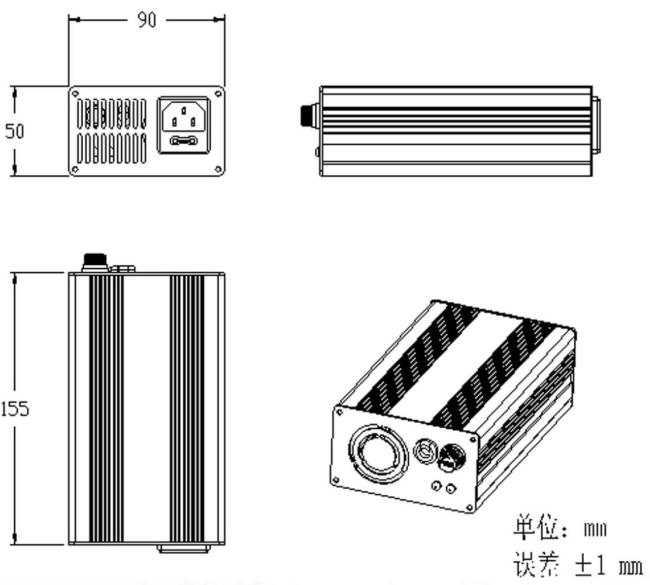

Mechanical Drawing:
Ralated Chargers of 180W:
| Output series: 180W Size: 155×90×50 mm Net weight: 0.9 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
AC Input: 85~264V
Frequency: 47~63HZ
| VL1208L | 12V LiFePO4 Battery | 14.6V | 8A | CC5~8% | |
| VL1208 | 12V Lead-acid Battery | 13.5V | 14.7V | 8A | CC20% | |
| VL2405LM | 24V Li-MnO2 Battery | 29.4V | 5A | CC5~8% | ||
| VL2405 | 24V Lead-acid Battery | 27.6V | 29.4V | 5A | CC20% | |
| VL3604L | 36V Li-MnO2 Battery | 42V | 4A | CC5~8% | ||
| VL3604 | 36V Lead-acid Battery | 41.4V | 44.1V | 4A | CC20% | |
| VL4803LM | 48V Li-MnO2 Battery | 54.6V | 3A | CC5~8% | ||
| VL4803 | 48V Lead-acid Battery | 55.2V | 58.8V | 3A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
About DANL Company
Q. Are you a factory or trading company?
A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.
Q. What's about the warranty for Danl battery chargers?
Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.
Q. Do you accept OEM order?
A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.
Q. What is about the lead time for an order?
A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.
Q. What certification do you have?
A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.
Q. Why choose your smart battery chargers?
A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
