3.65V 4.2V 20A Single Cell Lithium Battery Charger For LiFePO4 155 * 90 * 50 MM

3.65V 4.2V 20A Single Cell Battery Charger For LiFePO4 / Li-ion Battery, 180W Output Power with 20Amps CC CV Charging

Brief Descriptions:

Advanced high frequency switching mode power supply technology, MCU controlled.

Aluminum casing, light weight, portable.

Custom-made for single cell lithium battery.

Input with 110 or 230Vac

Charging with 3.65V or 4.2V 20Amps.

Intelligent 4 steps charging with pre - charge, CC, CV and automatic cut-off.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Applied to 3.65V single cell LiFePO4 battery or 4.2V single cell Lithium ion batery.

Factory price, high quality.

Warrant with 2 years and free replacing in two years.

Technical Specs.:

1) Dimensions(LxWxH): 155 x 90 x 50 mm

2) Net weight: 0.9 KG

3) Max charging voltage(CV): 3.65 / 4.2 volt

4) Floating voltage: customized

5) Max output current (CC): 20 amps

6) Charging method: pre-charge, CC, CV, trickle or shut off

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

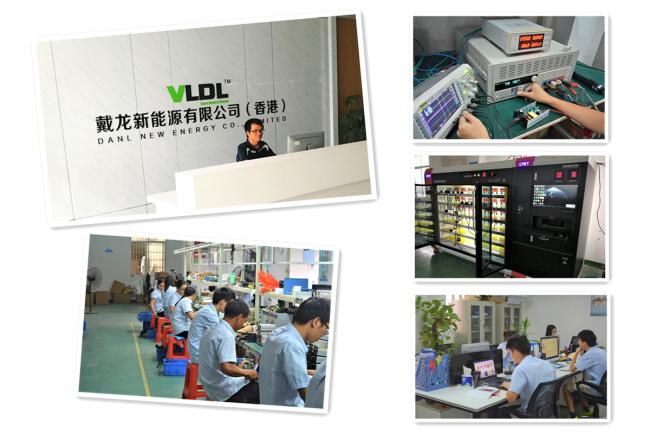

Quality Control:

We have passed Quality Management ISO 9001:2015 and Environmental Management ISO 14001:2015. We control our quality as following 6 steps:

Step 1 Using Famous Brand Components: Only use famous brand and high quality components and choose suppliers with certifications. Guarantee no low quality components get into our warehouse.

Step 2 Inspecting Components: Inspect every batch of incoming components.

Step 3 Qualified Workers Assembling: 2 year qualified workers assemble the battery chargers, high efficiency and low failure rate.

Step 4 Smart Aging System: Using smart aging system to do burn-in test with full load for at least two hours. This system will age battery chargers automatically after setting in computer and record every aging information. Guarantee every battery charger's components under the good condition.

Step 5 Latest ATE Battery Charger Test System: At last, we do final test by our latest ATE Battery Charger Test System before packing. This system will do more than 10 performances automatic testing and check all functions automatically, recording test data with very fast and precise way, tracking test result, reading, comparing and filing all data, easy to control. Every battery charger has an unique tracking code, when there is a fault on battery charger, we just scan the code and track its manufacturing information.

Step 6 Random Test Before Shipping: Before shipping, we will choose two chargers randomly and test again. This shipment can be released for shipping if there is no problem at random test.
