8A 58.8V 48v Lifepo4 Battery Charger Intelligent Fast Cv Cc Charging

Lithium ion battery charger 48V 8A, universal 110-230V input, intelligent fast CC CV charging

Features:

Universal 90~264Vac input voltage with PFC.

48V 8A rated output Marine Battery Charger.

50.4V / 54.6 / 58.4 / 58.8V customized max charging voltage for Lithium / lead-acid batteries.

Aluminum Black Case.

Micro-processor controlled and intelligent 4 steps charging.

92% high efficiency.

2 years warranty, high quality.

Spcifications:
Item No.: VL4808LPF
Dimension: 243*134*69mm.
Gross weight: 2.5kg.
Input voltage: wide 90~264Vac.
Output rated: 48Vdc 8Amps.
Max charging: customized 50.4V / 54.6V / 58.4V / 58.8V.
Applied to battery Types: 48V Lithium-ion, LiFePO4, LiMnO2 battery.
Smart Charging: Auto. Pre-charge, CC, CV, Floating or Cut-off.

Advantages:
Smart and Advanced Charging Controls:
You can decide your battery charger's charging steps, pre-charging with small current,
constant current charging,constant voltage charging, floating charging or automatically cut-off
when it's fully charged.

CAN communication:
We can add CAN bus for communication. Controlled by software for starting and charging.
Read all information by CAN bus port and communicate with your battery's BMS.

Dual input voltages:
Just plug the AC plug to the wall socket, our charger will detect voltage 110V or 230V automatically.
No need to choose by hand! No worry for wrong input voltage to break charger.

Automatic detecting and charging:
After setting right charging voltage and steps, our charger will run automatically, just leave it alone.
Automatic detecting battery's voltage and charging status, stop and re-charging by itself.
No worry for over-charging, no need to operate it again and again.

High quality, free replacing in 2 years:
We only provide high quality product, so we guarantee 2 years free replacing warranty policy.
There are no other suppliers have the same policy. But we have confidence to provide.

Charging Curve:

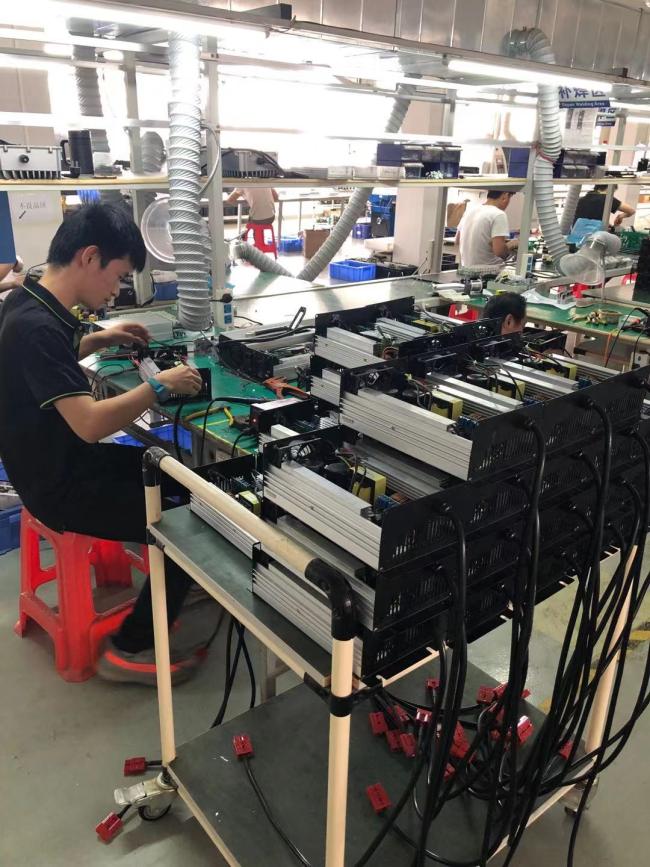

48V 8A battery charger assembling	48V 8A smart charger packed to US market
