Stainless Steel 3/32 Inch High Pressure Quick Coupler
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
7-20 work days
Brand:
carterberg
Product Description
G1/4 STEEL SUPER HIGH PRESSURE HYDRAULIC QUICK COUPLING, high pressure quick connect fittings
Features
- Special valve design eliminate spillage when connecting and disconnecting.
- Poppet valves available to prevent uncoupled leakage.
- Poppet valves open automatically when coupled, within rated working pressure,to keep the flow expeditely.
- Special materials are used in critical parts and hardened for durability.
- Dependable ball-locking mechanism holds the mating halves together.
- Socket and plug are precision machined from solid bar stock.
- Compatible with CEJN115 Series, 116 Series.
-
CB-2 Series are widely used in hydraulic jacks, torque tools, rescue equipments.
Standard Materials
- Brass, zinc-plated steel, stainless steel
- Seals: NBR, Viton, EPDM
Specifications
| Body Size(in) | 3/32 |
| Rated Pressure(PSI) | 21739 |
| Rated Flow(gpm) | 1 |
| Temperature Range(std seals) | -30℃ to +100℃ |
| Standard seal material | NBR |

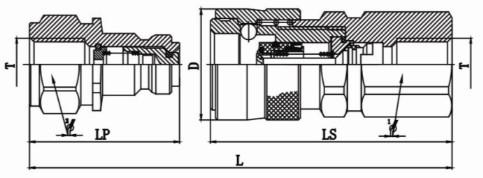

| PARTNO. | Thread | D | HEX1 | HEX2 | L | LS | LP |
| CB-S2S-2FG | G1/4 | Φ28 | S24 | S22 | 81 | 61.2 | 38 |
