4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
7-20 work days
Brand:
carterberg
Product Description
Steel PUSH AND PULLTYPE HYDRAULIC QUICK COUPLING ISO5675 Coupler
CB-4 Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.
Standard Materials
- zinc-plated steel
- Seals: NBR, Viton, EPDM
Features
- Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
- Poppet valves available to prevent uncoupled leakage.
- Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
- Critical parts are hardened for durability.
- Dependable ball-locking mechanism holds the mating halves together.
- Socket and plug are precision machined from solid bar stock.
- CB-4 series conforms to the standard of ISO5675.
- Compatible with PAPKER 4250 Series, FASTER CPV-CNV Series.

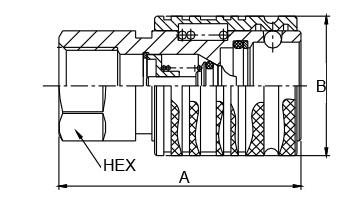

| Body Size | PARTNO. | Thread | A | B | HEX |
| 3/8" | CB-S3S-4FN-A | 3/8-18 | 66 | 38 | 27 |
| 3/8" | CB-S3S-4FG-A | 3/8-19 | 66 | 38 | 27 |
| 1/2" | CB-S4S-4FN-A | 1/2-14 | 66 | 38 | 27 |
| 1/2" | CB-S4S-4FG-A | 1/2-14 | 66 | 38 | 27 |
| 3/4" | CB-S6S-4FN-A | 3/4-14 | 69 | 38 | 34 |
| 3/4" | CB-S6S-4FG-A | 3/4-14 | 69 | 38 | 34 |
| Body Size | PARTNO. | Thread | A | B | HEX |
| 3/8" | CB-P3S-4FN-A | 3/8-18 | 27 | 61,5 | 27 |
| 3/8" | CB-P3S-4FG-A | 3/8-19 | 27 | 61,5 | 27 |
| 1/2" | CB-P4S-4FN-A | 1/2-14 | 27 | 44 | 27 |
| 1/2" | CB-P4S-4FG-A | 1/2-14 | 27 | 44 | 27 |
| 3/4" | CB-P6S-4FN-A | 3/4-14 | 34 | 64,5 | 34 |
| 3/4" | CB-P6S-4FG-A | 3/4-14 | 34 | 64,5 | 34 |
