Food And Beverage 0.25'' Stainless Steel Quick Coupling
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
7-20 work days
Brand:
carterberg
Product Description
Applications in Food and Beverage 1/4’’ Nominal Stainless Steel Quick Coupling
CB-9-C Series stainless steel coupling is a flat face dry break coupling used for hydraulic applications. The Series interchanges with all ISO 16028 profiles. Due to its stainless steel design, it is corrosion resistant and can handle aggressive environments.
Applications & Markets • Construction • Agriculture • Iron and Steel Industry • Railway • Oil and Gas • Marine • Material Handling • General Hydraulic applications
Features
- Designed and manufactured under Article 3.3 of the European Pressure Equipment Directive PED 2014/68/EU
- Safety sleeve lock prevents accidental disconnections
- Push to connect with double shut-off valving
- Resistant to aggressive environments and corrosion
- Standard body material: 316L Stainless steel corrosion resistant
- Alternative end connections available upon request
- Standard seal material: FKM, EPDM, NBR+AU, HNBR (upon request)

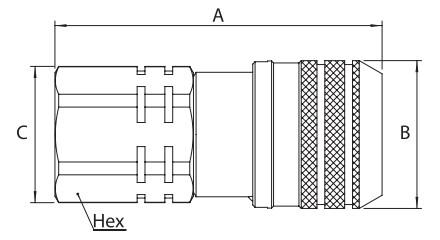

| Body Size | PARTNO. | Thread | A | B | C | HEX |
| 1/4" | CB-S2M-6FN-C | 1/4-18 | 2.13 | 1.06 | 0.94 | 0.87 |
| 1/4" | CB-S2M-6FG-C | 1/4-19 | 2.13 | 1.06 | 0.94 | 0.87 |
| 3/8" | CB-S3M-6FN-C | 3/8-18 | 2.68 | 1.26 | 1.16 | 1.06 |
| 3/8" | CB-S3M-6FG-C | 3/8-18 | 2.68 | 1.26 | 1.16 | 1.06 |
| 3/8" | CB-S3M-6FG-C | 1/2-14 | 2.80 | 1.26 | 1.16 | 1.06 |
| 1/2" | CB-S4M-6FN-C | 1/2-14 | 3.27 | 1.50 | 1.56 | 1.42 |
| 1/2" | CB-S4M-6FG-C | 1/2-14 | 3.27 | 1.50 | 1.56 | 1.42 |
| 1/2" | CB-S4M-6FG-C | 3/4-14 | 3.39 | 1.50 | 1.56 | 1.42 |
| 5/8" | CB-S5M-6FN-C | 3/4-14 | 3.39 | 1.66 | 1.56 | 1.42 |
| 5/8" | CB-S5M-6FG-C | 3/4-14 | 3.39 | 1.66 | 1.56 | 1.42 |
| 3/4" | CB-S6M-6FN-C | 3/4-14 | 3.82 | 1.81 | 1.77 | 1.61 |
| 3/4" | CB-S6M-6FG-C | 3/4-14 | 3.82 | 1.81 | 1.77 | 1.61 |
| 3/4" | CB-S6S-6FG-C | 1-11 | 3.82 | 1.81 | 1.77 | 1.61 |
| 1" | CB-S8M-6FN-C | 1 1/4-11.5 | 4.07 | 2.36 | 2.36 | 2.17 |
| 1" | CB-S8M-6FG-C | 1-11 | 4.07 | 2.36 | 2.36 | 2.17 |
| Body Size | PARTNO. | Thread | D | E | F | HEX |
| 1/4" | CB-P2M-6FN-C | 1/4-18 | 2.01 | 0.46 | 0.94 | 0.87 |
| 1/4" | CB-P2M-6FG-C | 1/4-19 | 2.01 | 0.46 | 0.94 | 0.87 |
| 3/8" | CB-P3M-6FN-C | 3/8-18 | 2.56 | 0.78 | 1.16 | 1.06 |
| 3/8" | CB-P3M-6FG-C | 3/8-18 | 2.56 | 0.78 | 1.16 | 1.06 |
| 3/8" | CB-P3M-6FG-C | 1/2-14 | 2.68 | 0.78 | 1.16 | 1.06 |
| 1/2" | CB-P4M-6FN-C | 1/2-14 | 2.72 | 0.96 | 1.56 | 1.42 |
| 1/2" | CB-P4M-6FG-C | 1/2-14 | 2.72 | 0.96 | 1.56 | 1.42 |
| 1/2" | CB-P4M-6FG-C | 3/4-14 | 2.83 | 0.96 | 1.56 | 1.42 |
| 5/8" | CB-P5M-6FN-C | 3/4-14 | 2.83 | 1.06 | 1.56 | 1.42 |
| 5/8" | CB-P5M-6FG-C | 3/4-14 | 2.83 | 1.06 | 1.56 | 1.42 |
| 3/4" | CB-P6M-6FN-C | 3/4-14 | 3.70 | 1.18 | 1.77 | 1.61 |
| 3/4" | CB-P6M-6FG-C | 3/4-14 | 3.70 | 1.18 | 1.77 | 1.61 |
| 3/4" | CB-P6S-6FG-C | 1-11 | 3.70 | 1.18 | 1.77 | 1.61 |
| 1" | CB-P8M-6FN-C | 1 1/4-11.5 | 4.12 | 1.42 | 2.36 | 2.17 |
| 1" | CB-P8M-6FG-C | 1-11 | 4.12 | 1.42 | 2.36 | 2.17 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
