Hot Oil IATF 16949 Hydraulic Quick Disconnect Couplings
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
7-20 work days
Brand:
carterberg
Product Description
Valved sockets for automatic shut off when line is disconnected Brass Straight Through Coupler
CB-11-B Series couplings can be used with water-glycol, hot water and hot oil. Body sizes are 1/4", 3/8" and 1/2".
couplings provide the flow needed to cool or heat injection molds and die casting dies. Sockets are available non-valved for maximum flow, and valved to prevent fluid loss when disconnected.
Features
- Valved sockets for automatic shut off when line is disconnected
- Brass plugs with male pipe thread for recessed mounting to avoid damage to plugs when molds are being changed or stored
- Compatible with Flo-Temp Series.

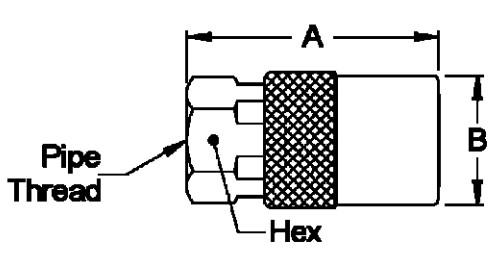

| Body Size | PARTNO. | Thread | A | B | Hex |
| 1/4" | CB-S2B-11FN-C | 1/8-27 | 1.68 | 0.67 | 0.56 |
| 3/8" | CB-S3B-11FN-C | 1/4-18 | 2.18 | 0.89 | 0.75 |
| 1/2" | CB-S4B-11FN-C | 1/2-14 | 2.00 | 1.17 | 1.13 |
| Body Size | PARTNO. | Thread | D | E | Hex |
| 1/4" | CB-P2B-11FN-C | 1/8-27 | 1.00 | 0.58 | 0.50 |
| 3/8" | CB-P3B-11FN-C | 1/4-18 | 1.38 | 0.72 | 0.63 |
| 1/2" | CB-P4B-11FN-C | 1/2-14 | 1.72 | 1.08 | 0.94 |
