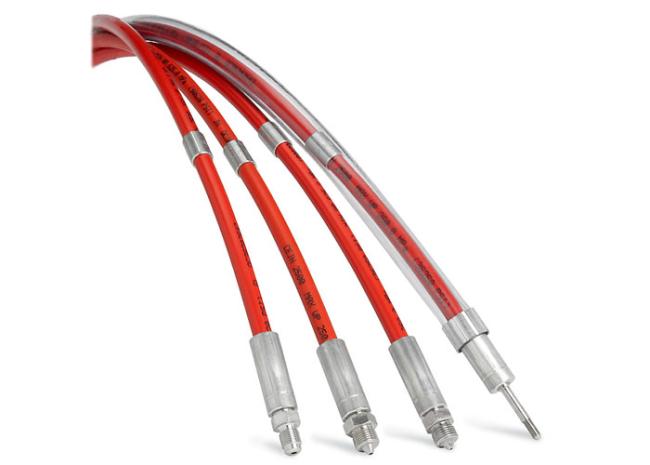

Water Jetting Hydraulic Ultra High Pressure Hose 250MPa 6 Layer
Water jetting / Hydraulic Hose 250 MPa, DN5 6 layer Ultra High Pressure Hose
· Top operator safety
· Great flexibility
· Wide range of hydraulic and water jetting applications
· Certified and traceable with CiS
· Custom made assemblies
· In accordance DIN EN1829-2
This 250MPa high pressure hose is designed for hydraulic applications such as tensioning and is also suitable for some of the water jetting and cutting applications in both on and offshore environments. The 6 layers of high tensile steel marks this out as safe hose to work with for the operator, without giving too much on flexibility. Volumetric expansion (19%) means the overall length of the hose does no vary more than +/-2%.
Applications: 1. High pressure hydraulic services in the chemical and oil refining industries. 2. Industrial cleaning including the construction and shipbuilding sectors. 3. Removal of built-up layer of sealants, paints or sealed in grime from concrete, asphalt and metal exteriors. 4. Hydro-demolition concrete, road services and other constructions. 5. Promoting safe and flexible operation of chemical fluids and grease injection systems. 6. Hydraulic pre-tensioning systems.
|
Design |
Inner tube of polyoxymethylene (POM), 6 spiral layers of high tensile steel wire,outer sheath of polymide (PA) |
|
ID x OD |
4.8 x 12.9 mm |
|
Max. working pressure |
250 MPa |
|
Min. burst pressure |
625 MPa |
|
Min. bend radius |
175 mm (6.9") |
|
Weight |
410 g/m (14.4 oz) |
|
Temperature range Hydraulic |
-40°C — +100°C (-40°F — +212°F) |
|
Temperature range Water Jetting |
-10°C — +70°C (14°F — +158°F) |
