Insert-Type Pneumatic All-metal All Copper Nickel Stainless Steel Connectors

Price Negotiable

Price: Negotiatable

MOQ: 10

Delivery Time: 20 days

Brand: carterberg

Product Description

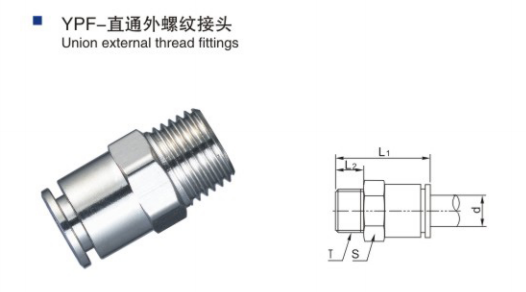

Insert-Type Pneumatic All-metal (All Copper Nickel, Stainless Steel) Connectors

Insert-type pneumatic all-metal connectors are commonly used in pneumatic systems where a reliable and secure connection is required. These connectors are designed to withstand high pressures and harsh environments due to their construction from materials like copper, nickel, and stainless steel.

lnserted pipe fittings

Texture	Pure copper nickel plating	Productfeatures	Full brass manufacturing, nickel plated, using the novel structure of oll seal, Small and exquisitldvolume,beautifulnadelling and conveniednt disassembling nake the pneumatic system greatlysimplifiled. if users need other materials, we can negotiate the customization.
Standard working pressure	0-1.6Mpa
Oll seal	NBR FR	Scope of application	Insert pipe fittings can be used with PA, PU, PE hose in compressed air circuit, connectingcylinders,valves and pneumatic logic elements, etc.
Operating temperature	-20°- 80° -20°- 200°
