China Custom Stainless Steel Carbon Steel Galvanized Steel Clevis Yoke for sale

Custom Stainless Steel Carbon Steel Galvanized Steel Clevis Yoke

Price Negotiable
Price: Negotiation
MOQ: 10 Piece/Pieces
Delivery Time: 7-40 work days
Brand: PHIDIX
Product Description



Custom Stainless Steel Carbon Steel Galvanized Steel Clevis Yoke



【 Product Description 】

1)code for thread: regular thread

2)for semifinished products , tolerance h11 according to DIN 1778.

3)radius or 45° bevelling(at manufacture's choice)

*)these clevised are according to CETOP RP 102P(except cone head forme)



【 Surface Protection 】

Optional: phosphatized and oiled, electroplated galvanized ; passivated in white-blue(silver/clear) or yellow.

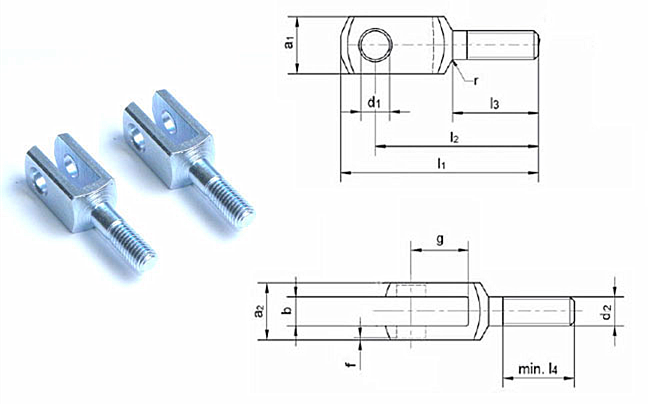

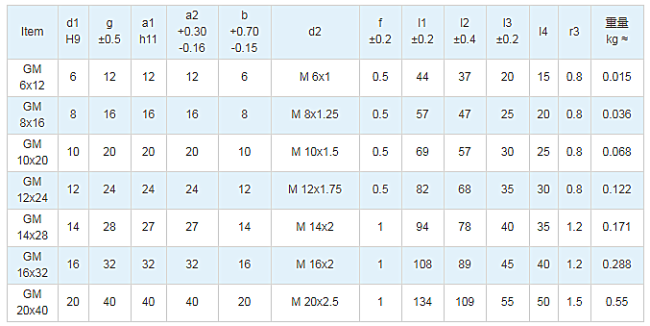

【 Drawing 】

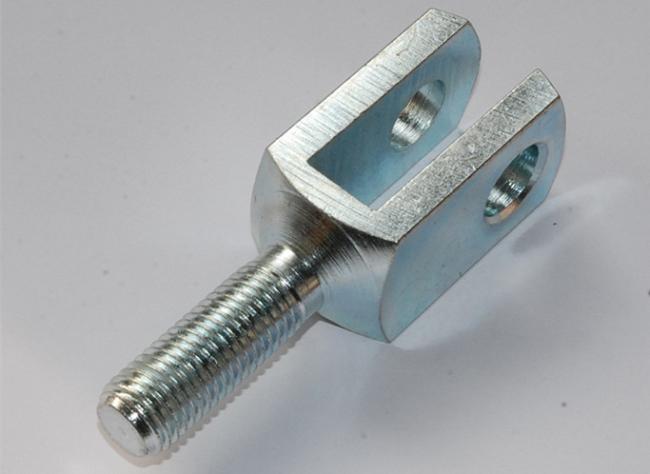

【 Real Picture 】
