NR110 Silk Colorimeter LED Light Portable Test Plastic Metal Color Spectrum Analyzer
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
2-3 working days
Brand:
Silk
Product Description

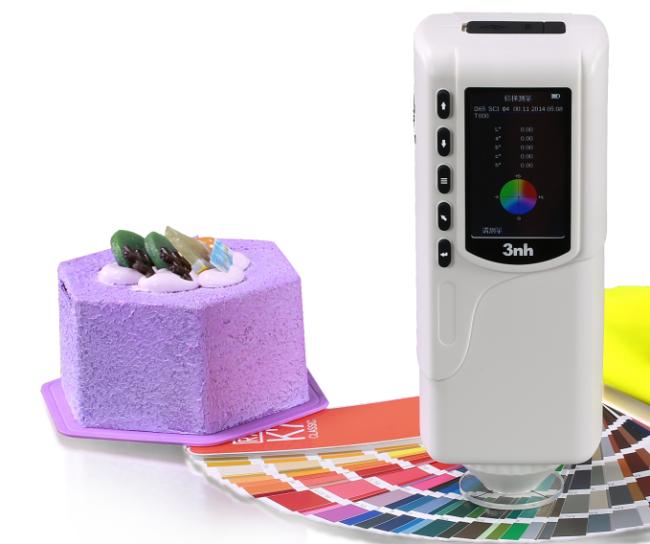

NR110 Precision Colorimeter
New Functions
Double Locating: Illuminating locating and cross locating
Double Measurement End Face: Large area measurement and small area measurement
New Integrating Sphere Design: More stable measurement
Equipped with Rechargeable High-Capacity Li-ion Battery
Product Advantages
a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
b. Double Locating: Illuminating locating and precise cross locating.
c. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
d. New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.
e. 4mm Measuring Aperture.
f. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
g. Configure CQCS3 software. Connect PC computer to realize more functions.
h. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
i. Hand-head structure: small and convenient; make the measurement easier.
j. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
k. Spending huge sums on high-end mold. Product consistency approaches 100%.
l. High cost performance: large output, good quality, cheap products.

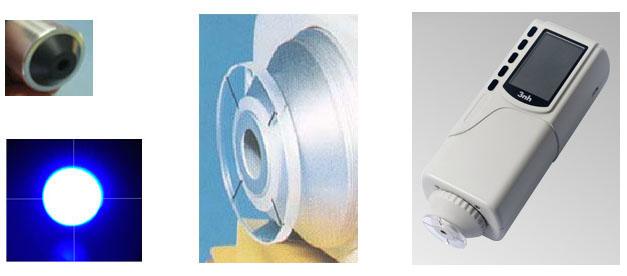

Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110)
NR110 Technical Specifications
|
Illuminating/Viewing Geometry
|
8/d
|
|
Measuring Aperture
|
Φ4mm
|
|
Detector
|
Silicon photoelectric diode
|
|
Locating
|
Illuminating Locating/Cross Locating
|
|
Measurement End Face
|
Large stable end-face and small concave-convex end-face
|
|
Color Space
|
CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
|
|
Color Difference Formula
|
△E*ab △L*a*b* △E*C*h*
|
|
Light Source
|
D65
|
|
Light Source Device
|
LED blue light excitation
|
|
Errors Between Each Equipment
|
≤0.80ΔE*ab
|
|
Storage
|
100pcs standards 20000pcs samples
|
|
Repeatability
|
Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
|
|
Language
|
English/Chinese
|
|
Weight
|
450g
|
|
Dimension
|
205×67×80 mm
|
|
Power source
|
Rechargeable lithium-ion battery 3.7V@3200mAh
|
|
Lamp Life
|
5 years, more than 1.6 million measurements
|
|
Charging Time
|
8 hours--100% electricity
|
|
PC Software
|
CQCS3 Software
|
|
Printer (optional)
|
Miniature thermal printer
|
