45° / 0° SCE Silk Spectrophotometer 400nm - 700nm Wavelength For Paints

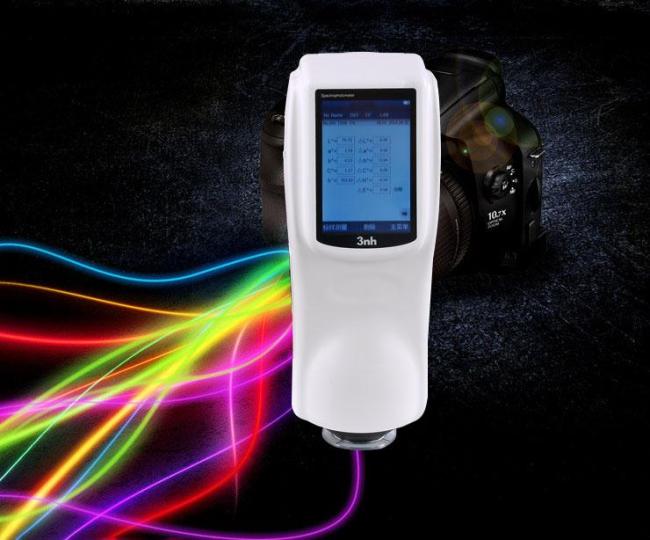

45°/0° SCE 400nm-700nm Wavelength Silk NS800 Spectrophotometer with 200% Reflectance
NS800 portable spectrophotometer for measuring the color difference standard and sample measured, the measuring geometry 45°/0°, high accuracy and repeatability of measurements. Recommended wherever measurement is required in accordance with the visual impression, f.ex. quality control of party products. With its lightweight, a large internal memory and use rechargeable batteries measurements can be made at any stage of production, anywhere. NS800 spectrophotometer equipped with a 3.5 "color touch-screen - easy to use with intuitive menus. It has the ability to connect to computer via USB.
Especially recommended for measuring vehicle cabin interior components, reflective elements, etc. Of electronic components, paints and varnishes. It can be used in the pharmaceutical and cosmetic industries.
| Model | NS800 Spectrophotometer |
| Lighting/measurement system | 45°/0°, SCE |
| Detector | Silicon photodiode |
| Diameter integrating sphere | Φ58mm |
| Measurement range | Reflectance: 0 to 200% |
| Wavelength range | 400nm-700nm |
| Spectral resolution | 10nm |
| Observer | CIE: 2° i 10° |
| Measuring aperture | Φ8mm |
| Illuminant | CIE D65, A, C, D50, D55, D75, F2, F6,F7, F8, F10, F11, F12 |
| Measurement function | CIE LAB, XYZ, Yxy, LCh, CIE LUV; ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00; White Index(ASTM E313, CIE/ISO,AATCC,Hunter), Yellow Index(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), metamerism index (Mt), greyscale |
| Repeatability | Measurement conditions: white calibration plate measured 30 times at intervals of 5 sec., after calibration white reflectance standard deviation of 0.1% (400 ~ 700nm: within 0.2%) chromaticity value: the standard deviation ΔE * ab 0.04. |
| Conformity between instruments | ΔE * ab within 0.2 (measurement conditions: the average for the 12 color plates BCRA Series II compared to values measured with the reference device) |
| Measurement memory | 1000 measurements of models, 10000 measurements of samples |
| Power source | Rechargeable Li-ion battery, AC power cord |
| Dimensions and weight | LxWxH=90x77x230mm; 600g |
| Work conditions | 0 ° C - 40 ° C, relative humidity of 80% or less (at 35 ° C) |
| Additional accessories | Miniature printer, adapter for measuring liquids, pastes and powders |
| Additional informations | Compliance with CIE No.15, Includes: black and white calibration plate, shell panel, Li-ion battery, power cable, software CD |
