PVC Film Color Measurement Instruments , Silk Hunter Lab Spectrophotometer

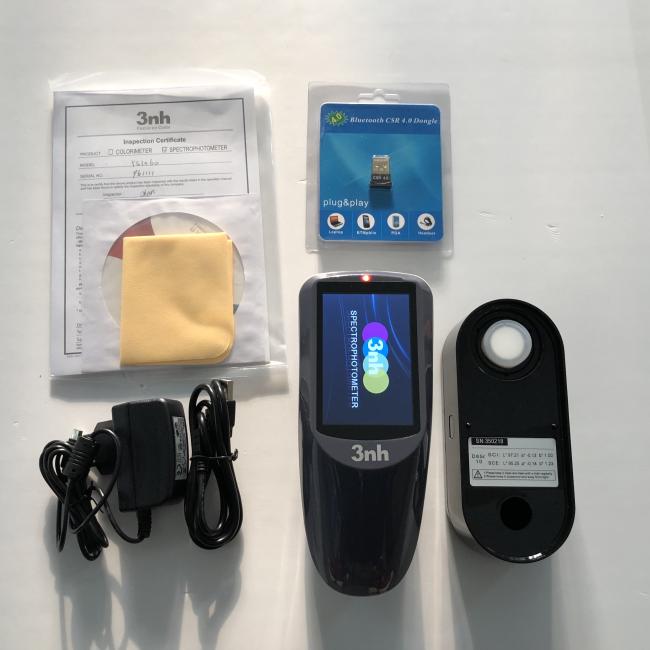

PVC Film Color Test Spectrophotometer with High Accuracy 0.04 YS3010 Silk
YS3010, YS3020, YS3060 grating spectrophotometer is independently developed with independent intellectual property rights by Silk.The machine is precise,powerful, and is in the lead of color measurement instrument .Grating spectrophtometer is usually used in plastic electronics, paint and ink, textile printing and dyeing, printing paper, automotive, medical, cosmetic and food industries, research institutions and laboratories.
YS3010 Economical Spectrophotometer equipped with Φ8 aperture,used in plastic electronics, paint and ink, textile printing and dyeing, printing;accurate color measurement in ceramics such as industry, the quality control.
Features:
-
Beautiful appearance modelling and the perfect structure design in line with Ergonomics
-
D/8 geometry,in line with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7；
-
Equipped with long life LED light,include/excludUV
-
Switchable 8mm and 4mm measuring apertures,can measure CIE.SCE in the same time
-
Can measure the spectrum measuring samples, Lab data accurate and can be used for color matching and accurate color;
-
TFT 3.5inch, Capacitive Touch Screen
-
USB/Bluetooth 2.1double communication mode, and wider adaptability
-
Super stain-resistant and stable calibration board
-
Large storage,can store 20000 samples
-
Camera locating
-
PC Software-Realize more function expansion
Specification:
|
Illumination/ obsevation System |
Reflect: di:8-degress |
|---|---|
|
Model Name |
YS3010 Spectrophotometer (Basic Mode) |
|
Wavelength Range |
400-700nm |
|
Spectral Mode |
Concave-Grating |
|
Sensor |
256 image Element Double Arrays CMOS Image Sensor |
|
Measuring Aperture |
8mm |
|
Light-included Mode |
Both SCI & SCE Modes |
|
Color Space |
CIE LAB, XYZ,Yxy,LCh,CIE LUV,HunterLAB |
|
Other Colorimetric Data |
WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), |
|
Repeatability |
Spectral reflectance: MAV/SCI, Standard devition within 0.1%(400-700nm:within 0.2%) Chromaticity Value: Standard deviation within delta E*ab 0.05 |
|
Observer |
2-degree / 10-degree |
|
Inter-instrument agreement |
Within deltaE*ab 0.2 |
|
Measuring Mode |
Single Measurement, Average Measurements(2-99 times) |
|
Locate Mode |
Camera Mode |
|
Size |
184*77*105mm(L*W*H) |
|
Weight |
about 600g |
|
Battery Performanca |
Li-ion Battery.5000 measurements within 8 hours |
|
Screen |
3.5 inch TFT color LCD, Capacitive Touch Screen |
|
Interface |
USD/RS-232,Bluetooth 4.0 dual mode |
|
Storage |
Standard:1000,Sample:20000(SCI&SCE can be included in one data) |
|
Language |
Chinese, English |
|
Standard Accessories |
Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover |
|
Optional Accessories |
Micro Printer, Powder Test Box |
|
Notes |
The specifications are subject to change without notice. |
