Handheld Silk Colorimeter Color Management With Switchable Measuring Aperture

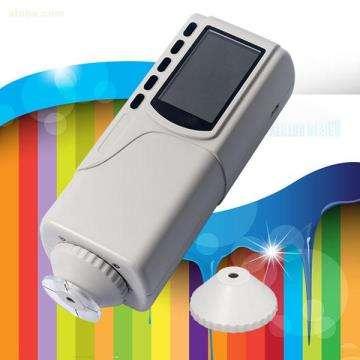

Silk Cheap Handheld Colorimeter NR110 with 4mm aperture PC software
Since 1998, from import to domestic, Silk NR110 precision colorimeter is an iconic milestone in color test industry.NR110 precision colorimeter features with 8/d structure that is very precise. This cheap colorimeter is spoken highly of by many customers, and the small size 4mm measurement aperture makes it popular used in many applications, such as fabrics, paper, plastic parts, building materials.
Application Industry: NR110 colorimeter is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
The model NR110 colorimeter instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
Feature
> Switchable 8mm and 4mm measuring apertures
> Higher measurement stability and accuracy
> Double locating: illuminating and cross locating
> Configured with rechargeable Liion battery
|
Model
|
NR110 Colorimeter
|
|
Display Mode
|
CIE L*a*b; CIE XYZ;CIE*C*H
|
|
Color Difference Formula
|
ΔE*ab; ΔL*ab; ΔE*C*H
|
|
Illuminating/viewing geometry
|
8/d (8°illumination angle/diffuse viewing)
|
|
Light Source
|
LED blue light excitation
|
|
Detector
|
Silicon photoelectric diode
|
|
Measuring Aperture
|
Φ4mm
|
|
Measuring Conditions
|
Observer: CIE 10° Standard Observer
|
|
Measuring Range
|
L: 0 to 100
|
|
Repeatability
|
Standard deviation within ΔE*ab 0.08
|
|
Storage
|
100 pcs standard samples; 20000 pcs test samples
|
|
Battery Life
|
More than 3000 measurements
|
|
Interface
|
Model B: USB RS-232: Baud rate 19200bps
|
|
Lamp Life
|
more than 1.6 million times in 5 years
|
|
Certificates
|
CE & RoHS & TUV & ISO9001
|
Applications:
